Antminer APW3++ power supply model and interface description

Antminer APW3++ power supply model and interface description

This article will mainly introduce the different interfaces of APW3++ and the description of common models of power supplies.

Power interface description:

1. APW3++ has ten ports, which can power Antminer S9/T9 series miners and Antminer L3+. However, it can only power one miner. For S9, it requires a 220 V power supply.
2. APW3++ with 18 ports can supply power to both S9/T9 series miners and L3+. However, it can only use a 220 V power supply to power one S9 miner. L3+ needs a 220 V power supply to power two devices, and a 110 V power supply can only power one L3+.

Power model description:

APW3++-12-1600-A3

10 ports

APW3++-12-1600-A5

18 ports

APW3++-12-1600-A6

10 ports

1. APW3++-12-1600-A3:

APW3++-12-1600-A3

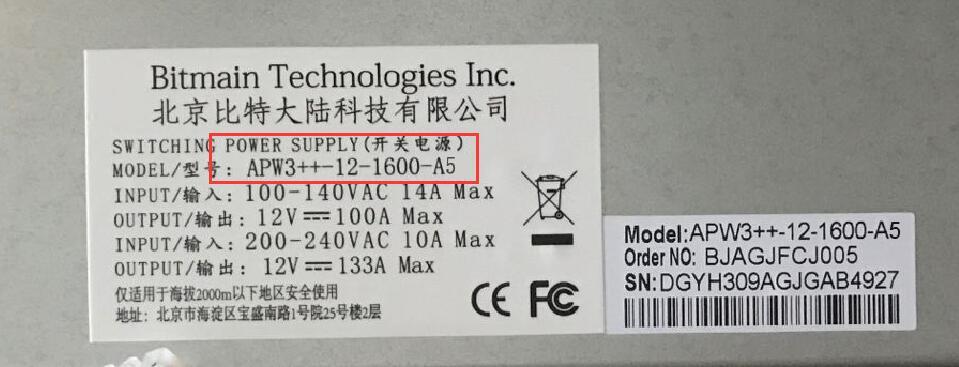

2. APW3++-12-1600-A5:

APW3++-12-1600-A5

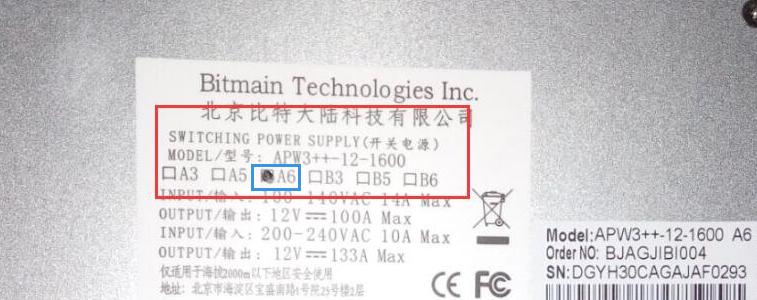

3. APW3++-12-1600-A6:

(Note: The power label of this model shows the model APW3++-12-1600, and the figure is A6)
APW3++-12-1600-A6
