How to use antminer repair kits to repair antminer hash board?
At present, there are practitioners engaged in cryptocurrency mining all over the world, including large farms, scattered individuals, and team-based farms. In all mining forms, ASIC miners account for a large proportion. ASIC miners will generate high temperatures during long-term operation, while ASIC chips will gradually age in high-temperature environments, reduce performance, and fail to start. At this time, we must replace the damaged chip in the hash board. Usually, there are dozens of ASIC chips in a hash board, and only 1-2, or 2-3 of them may be damaged. Then, how to accurately find these damaged chips has become a common problem encountered by repairers. In 2017, people almost all used oscilloscopes to find these bad chips, but for beginners, the use of oscilloscopes undoubtedly increased the difficulty of learning to repair. Because of this, the miner manufacturer has developed a professional Hash board testing equipment: test fixture. He locates the fault point by scanning the hash board, so as to locate the damaged chip quickly and accurately.

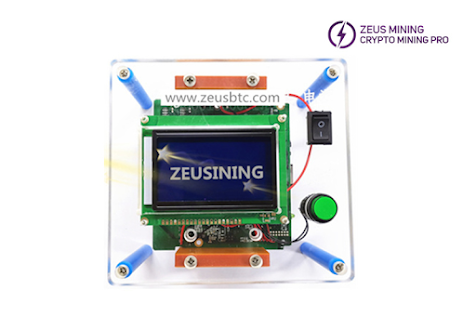

Hash board test fixture:
After locating the damaged ASIC chip, in order to avoid incorrect replacement of surrounding chips, we need to use a multimeter to measure the parameters of the chip to ensure the correctness of the test. Usually, each chip on the Antminer hash board will have 5 test points: CLK, CI, RI, BO, RST (relevant data can be obtained on zeusbtc.com).
Fluke 15B+ Multimeter
After ensuring that the above steps are correct, we can perform the chip replacement operation. Next, we need to use more professional tools:
1. Desoldering station
The desoldering station integrates the functions of a hot air gun and an electric soldering iron. The hot air gun is used to heat the Hash board in order to remove the radiator and ASIC chip (usually the chip is installed on the bottom of the radiator, and they are bonded by thermal glue or solder paste). The electric soldering iron is used to clean the residual tin dross after the chip is removed.
2: ASIC chip tinning tool
Due to the small size of the ASIC chip, many pins are arranged closely at the bottom. Therefore, we need to use professional tin-plating tools to apply solder paste to the pins of the chip, and then heat it to solidify, so as to be well fixed on the Hash board.
3: Official thermal curing thermal conductive adhesive
For bonding chips and heat sinks, official glue is recommended. If you use a third-party thermally conductive adhesive, the bonding strength may be inappropriate. Too low bonding strength will easily cause the radiator to fall off, and too high strength will not be easy to disassemble. In future repairs, the radiator is easy to tear when disassembling Split Hash board, and the official thermal conductive adhesive has the most suitable bonding strength and thermal conductivity.
4: Hash board data editor
This device is used to synchronize the data of the hash board of the miner. Its function is to repair the inoperability caused by the inconsistency of the hash board data in the miners. For example, when the hash boards of different miners are used, when the internal files of the hash board are inconsistent, the entire miner Will is not able to run, under normal circumstances, the background log will prompt "EEPROM" error. In addition, after using the test fixture to scan the Hash board, it may also cause data abnormalities. When the above situation occurs, the equipment needs to be repaired, and the scope of application: other models after Antminer s9se.
5: Necessary procedures and documents
To repair the Hash board, not only the above hardware devices but also some software or programs are needed.
E.g:
1. Test fixture file: Each miner model uses an independent test file. We copy it to the test fixture SD card to test the corresponding type of Hash board.
2. Hach board PIC file. This file is the key data of the Hach board and contains related settings such as voltage configuration. When the program fails, the Hach board will not run.
Based on the above reasons, we have assembled a repair kit. This project contains all the tools necessary to repair the Antminer Hash board, which simplifies the procurement process to a large extent. The kit has the characteristics of small size, lightweight, and easy to use. It can be used in a wide range of scenarios, including mining farms, maintenance departments, and individuals.
