Evaluation of the NOYCE N57 miner

Evaluation of the NOYCE N57 miner

The NOYCE N57 brought to you today is a miner used to produce MEER. You may not know much about MEER. Let us briefly introduce the evaluation of the NOYCE N57 miner:

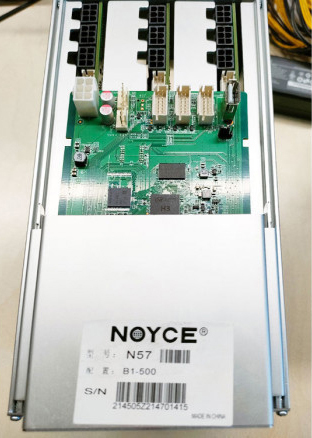

NOYCE N57 miner
The miner continues the design and structure of the mainstream miners. Although there is not much innovation, the mainstream shape is more acceptable. Next, look at the miner size, length 27.3cm, width 12.3cm, height 20.6cm.
miner size
According to official knowledge, this miner needs to be used with official control software. (This software only supports the Windows platform). First, connect the miner to the network cable and power supply.
connect to the miner
Open the control software, click Scan Miners to find the running miners, then configure the mining pool and wallet address, click to set the device information, and then click to restart the program to take effect. For example, setting PWM is a function to control the fan speed. This is an efficient function that can reduce power consumption and reduce noise very low. Similarly, after filling in the information, click the Set PMW button to take effect.
control software
After the miners are running smoothly, we first look at a set of 12-hour hash rate curves, and we can see that the hash rate is relatively stable.
12-hour hash rate curves
When setting the miner fan speed, it is not recommended to lower the speed in a high-temperature environment. However, under the condition of room temperature (24 degrees), the stability of low RPM, the hash rate curve for seven days is still stable, indicating that it is no problem to set low RPM at room temperature.

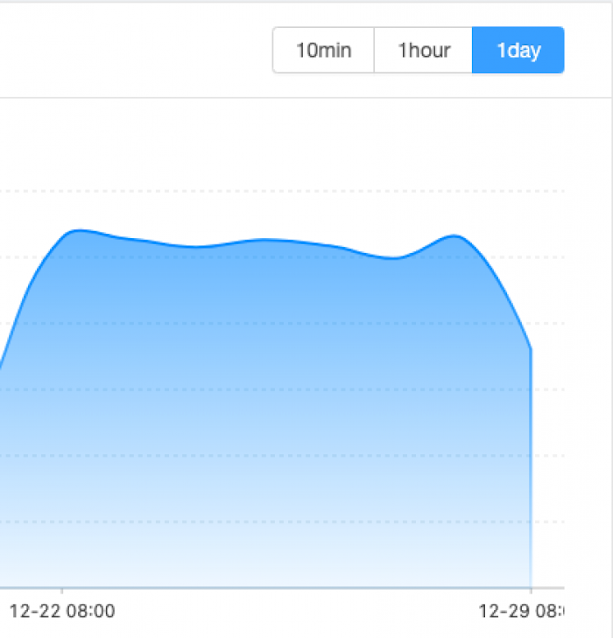

1 day hash rate curves
The 24-hour average hash rate is 521.99G.
24-hour average hash rate

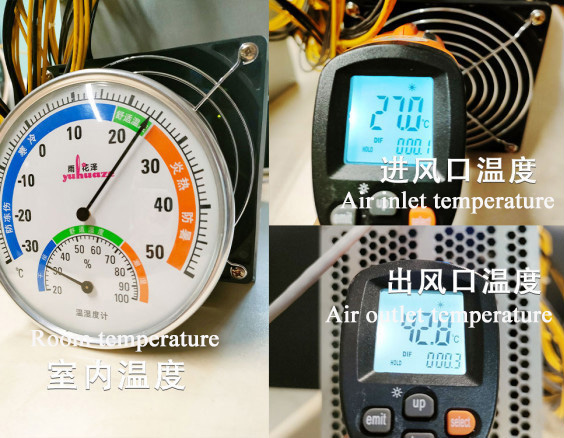

Let's look at a set of data on the operating temperature of miners, the room temperature is 24 degrees, the air inlet is 27 degrees, and the air outlet is 42.8 degrees. So overall, the calorific value of the miners is still very low.
operating temperature of miners
In the running state, the noise is 68 decibels, close to a silent miner's level.
running noise
The power consumption is 405w, 95w lower than the official data.
miner power consumption
Taking apart the miner, we can see that the miner consists of a control board and three hash boards.
N57 hash board

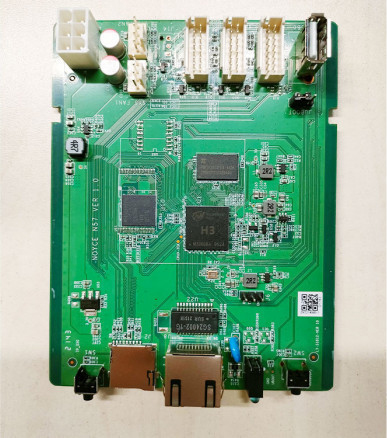

N57 control board
After removing the fan, it can be seen that there is ample space for heat dissipation between the three hash boards, ensuring good heat dissipation during the miner's operation.
three hash boards
From a single hash board, it can be seen that the quality is meticulous, and the quality is guaranteed.
single hash board
Data comparison:
project
Official data
Measured
Hash rate (G)
500
521.99
Power consumption (W)
500
405
Noise (dB)
No data
68
As a small currency miner, NOYCE N57 controls power consumption and noise very well.
