Zhanqi Z4 Miner Evaluation

Zhanqi Z4 Miner Evaluation

With the popularity of encrypted digital currency, mining has become more popular. However, not all cryptocurrencies can mine digital currencies with customized chips. The algorithm of some encrypted digital currencies determines that they can only be mined with graphics cards, such as Ethereum, ZEC, etc.
Zhanqi Miner has been researching and developing since February 2016. Based on the mature industry chain in the region, by summarizing the advantages of existing graphics card mining in the market, the development team has comprehensively improved the graphics card parameters, independently developed miners with high-end graphics card configuration, and launched Zhanqi series products Z1, Z1+, Z2, Z3, Z4, today we bring you the evaluation of Zhanqi Z4.

Product basic data

CPU
Intel G3930 Dual-Core Processor
Heat sink
INTEL original radiator
Motherboard
Colorful C. B250A- BTC PLUS
Graphics card
KOTIN RX570- 8G *8
RAM
4G DDR4 2400
Hard disk
60GB/120GB (random)
Chassis
Zhanqi Mining Box
Power supply
Zhanqi 1600W power supply
Consumables
Graphics card adapter cable 6P+6P *7
4P to 4P wire CPU exposed 650
6P to 6P wire graphics card exposed 380

Miner appearance

miner package
Zhanqi miners are packaged in industrial carton boxes, surrounded by shock-proof and anti-collision bubble wrapping pads, which effectively protect safety during transportation.

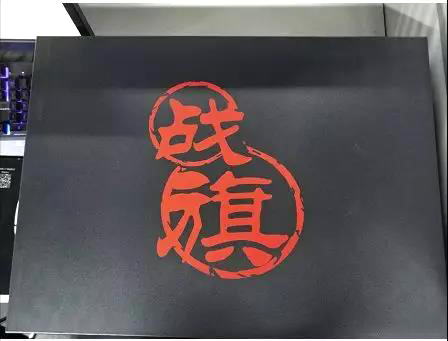

Zhanqi miner's logo
The Zhanqi Miner chassis adopts a flat design, with the Zhanqi logo on the front of the chassis, which is beautiful in artistry.
original radiator
INTEL original radiator.

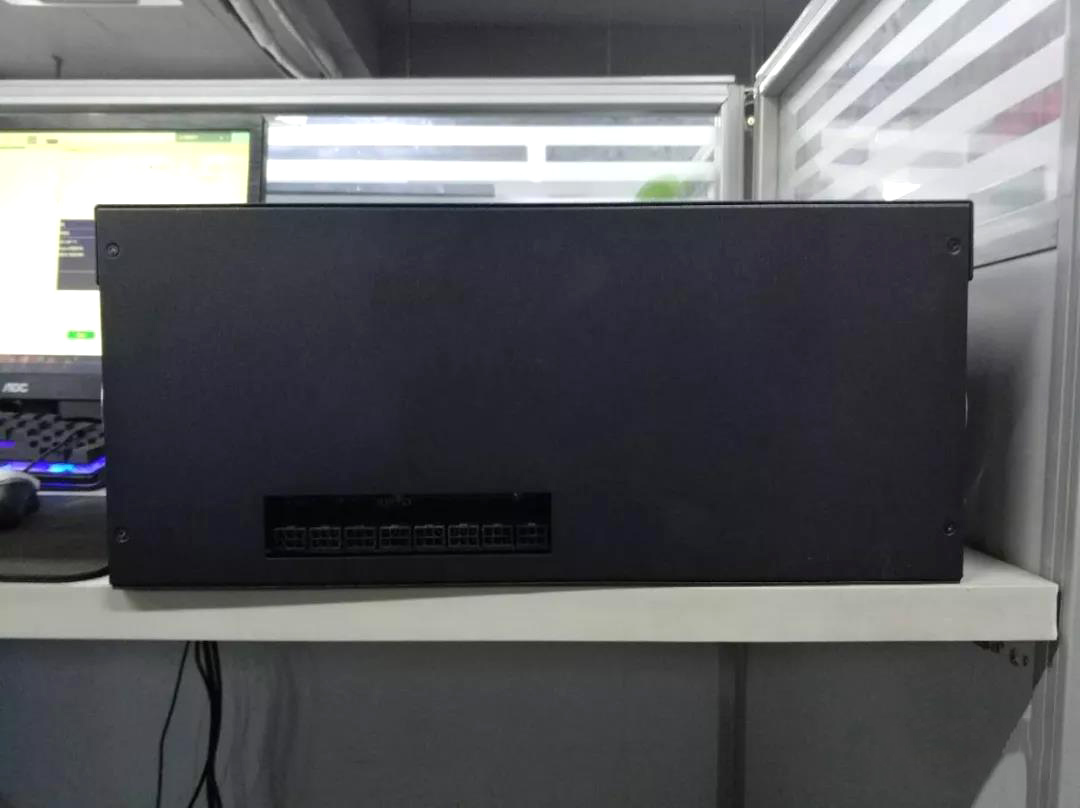

PSU connectors
On the side are eight PCI-e6pin power connectors.

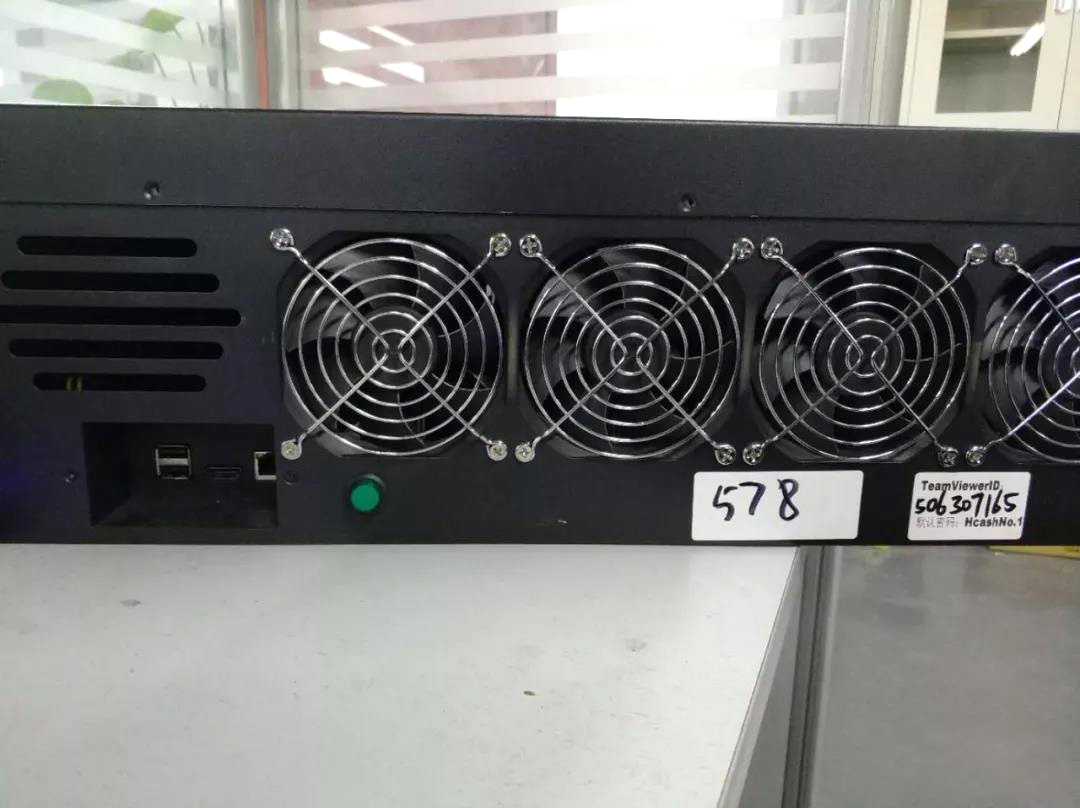

password label
Computer peripheral interface, there is a remote control software id and password label in the lower right corner.

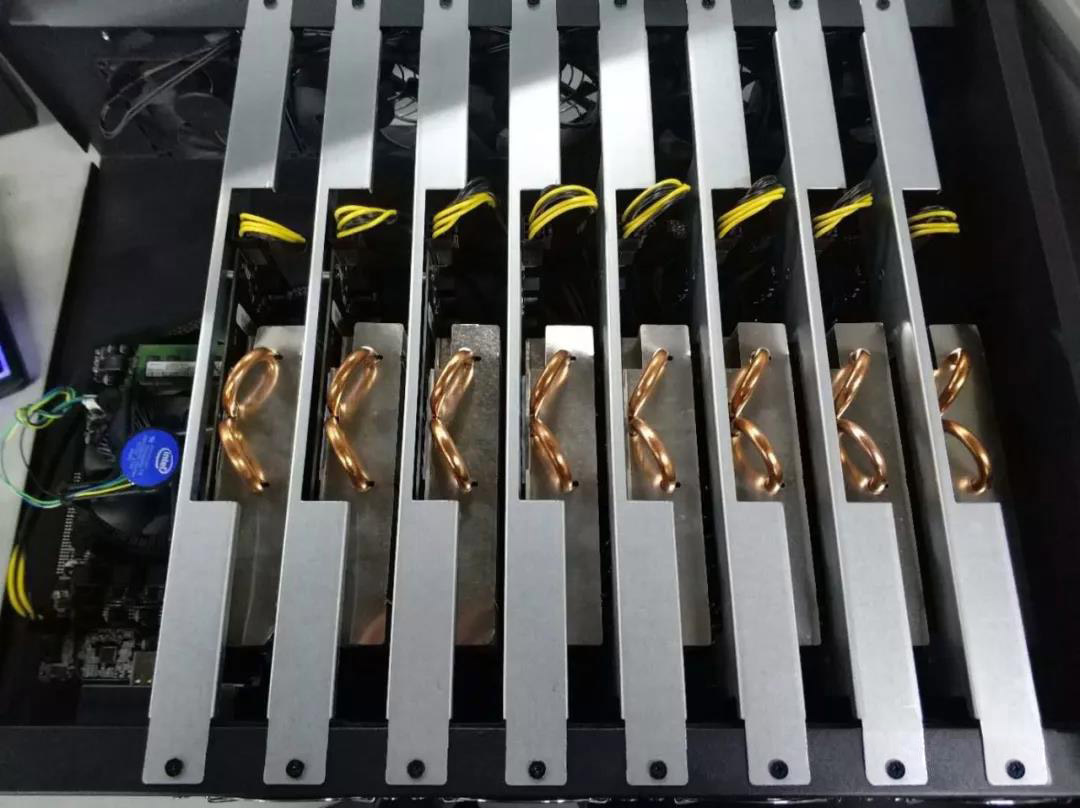

graphics cards
From the internal structure, it can be seen that the miner is composed of eight graphics cards, which are arranged in an orderly manner for easy maintenance.
heat sinks
The graphics card is equipped with ultra-thin metal heat sinks with lateral air ducts, better than standard thick aluminum heat sinks.
miner's CPU
At the primary control of the motherboard, you can see the CPU.
PSU with 1600w
The power supply with the miner is 1600w, with 8 PCI-e6pin power plugs (wire standard 16awg). It is an official customized power supply for miners, widely used in various types of miners, with stable performance.

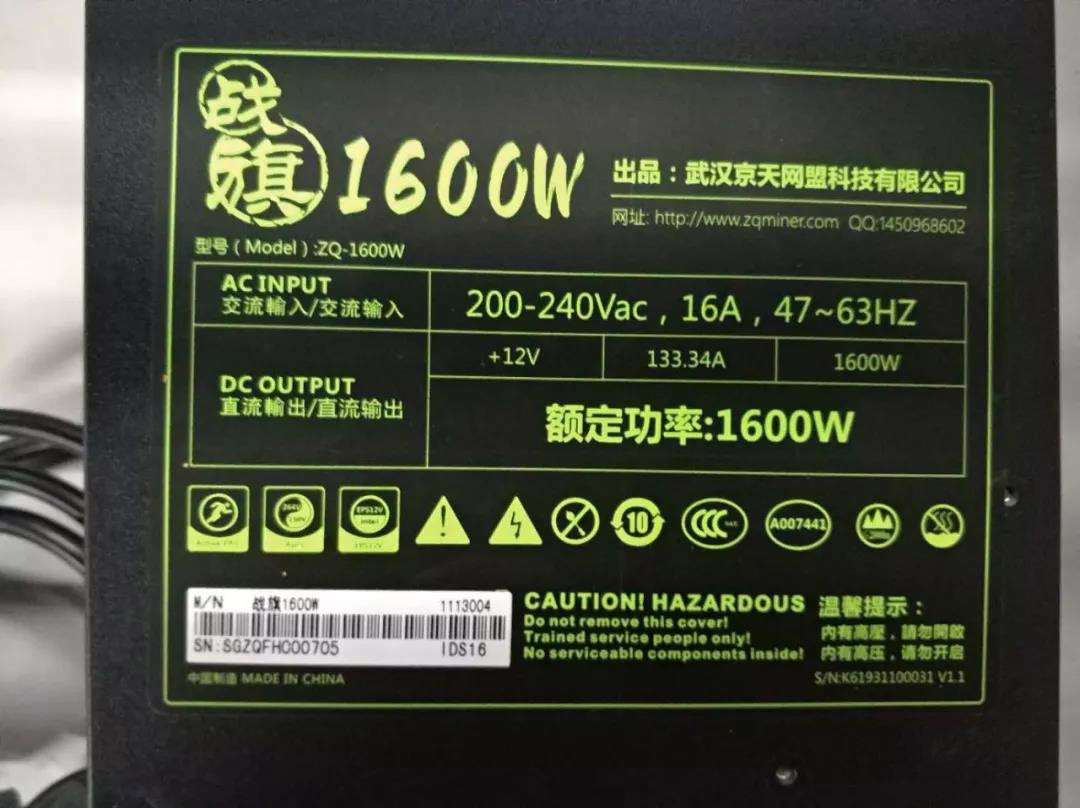

PSU parameters
The details of the power supply parameters are shown in the figure above.

Installation and commissioning

1. Wiring; the installation of Zhanqi Miner is very simple; just plug the power interface fully.
the installation of miner
connection complete
The above is what it looks like after connecting all the wiring of Zhanqi Z4GPU miner!
2. System settings
After connecting the line, power on the miner, press and hold the miner's power button, and after about ten seconds, the display shows that it has entered the system.
system settings
3. Mining settings
At this point, the system has started mining according to the default miner, click "Stop Mining," select the currency you want to mine, enter your wallet address, mining pool, and miner name (you can only fill in the sub-account, no suffix), Then click to start mining.
mining settings
mining information
The overall performance of the Zhanqi Miner Z4 is not bad, as it is equipped with a complete operating system, the mining setup is quite simple. The hash rate and power consumption are a bit lower than the norm, and the miners are running stably without failures. Ethereum is a leader in smart contract blockchains. At present, many companies have used Ethereum to develop innovative contract applications. As more and more companies develop blockchain applications based on Ethereum, Ethereum has unlimited potential in the future. Therefore, Zhanqi Mining is a good option.
The content and pictures of this article are from the Internet, compiled and edited by ZEUS MINING.
