Antminer S9K, S9SE Evaluation

Antminer S9K, S9SE Evaluation

In June 2016, Bitmain released the Bitcoin Antminer S9, using 189 Bitmain self-developed BM1387 bitcoin miner chips of the latest generation, with a hash rate of 11.85 TH/s, a power of 1172W, and a power consumption ratio of 100W. /T. The BM1387 chip is the fifth-generation bitcoin miner chip independently developed by Bitmain. It adopts TSMC's 16-nanometer FinFET process and is designed with a fully customized solution. As a result, the maximum hash rate of a single chip can reach 74GH/S.
Model
Hash rate (T)
Power consumption (W)
Power consumption ratio (W/T)
Number of chips
Time to market
S9
11.85
1300
109.70
189
2016.3
S9i
13.5
1320
97.78
189
2018.5
S9j
14.5
1350
93.10
189
2018.5
S9 Hydro
18
1728
96.00
216
2018.11
S9k
14
1148
82.00
180
2019.7
S9se
16
1280
80.00
180
2019.7
The Antminer S9 series has been in existence since 2016. The first Antminer S9 started with a hash rate of 11.852. Different models of S9 with different hash rates have been iterated continuously, and 13T and 14T versions have also been launched. In May 2018, Bitmain continued to launch upgraded versions of S9 with models S9i and S9j. The hash rate ranged from 13T-14.5T, and the power consumption was further reduced. In the winter of 2018, the market was also in the cold winter season. Bitmain also developed a water-cooled S9 Hydro bitcoin miner with a hash rate of 18T and power consumption of 1800W.
After many winters and summers, Antminer S9 still occupies a dominant position in the Bitcoin mining industry. Today, we evaluate the latest Antminers S9K and S9SE of Bitmain's Antminer S9 series.
Antminers S9K 14T and S9SE 16T were launched in July 2019. The Bitcoin market just experienced a small peak at that time, and the price reached $1,413.83. So perhaps this miner was born for this wave of the market.
Antminer S9SE-16T and S9K-14T are shorter and smaller than the first-generation S9. The physical size of Antminer S9K 14T and S9SE 16T is 321.3*129.6*200mm, and the weight is 4.56kg.
Antminer S9K 14T side view
Antminer S9K 14T side view
Antminer S9SE 16T side view
Antminer S9SE 16T side view
The number of power plugs of the three models of S9 is the same. There are three 6-pin power plugs on each of the three hash boards of the miner, plus the power supply connector of the control board; each miner needs 10 6-pin power connectors. It's just that the new generation of miner plugs has been replaced with more high-temperature-resistant materials.
Antminer S9K 14T interface
Antminer S9K 14T interface
Antminer S9SE 16T interface
Antminer S9SE 16T interface
Antminer S9K-14T and S9SE-16T fans and control panels are the same.
Antminer S9K 14T control panel
Antminer S9K 14T control panel
Antminer S9SE 16T control panel
Antminer S9SE 16T control panel
The Antminer S9k 14T uses a chip codenamed BM1393B-BGM independently developed by Bitmain. The chipping process is 16nm. The three hash boards contain a total of 180 ASIC chips.
Antminer S9k-14T
Antminer S9k-14T
Antminer S9k-14T
Antminer S9k-14T
Antminer S9SE 16T also has 3 hash boards and uses 180 TSMC 16nm ASIC chips codenamed BM1393CE-BGM.
Antminer S9SE 16T appearance
Antminer S9SE 16T ports
Antminer S9SE 16T is the latest generation of S9 from Bitmain. The difference from previous generations is that a protective cover is designed for the position of the control board and power interface. It can be removed by removing the middle screw at the back of the cover, convenient for installing the power cable.
Antminer S9SE  PSU protective cover
Although the added cover increases the racking process, it provides protection for the control board, the power interface, and the style of the miner power supply after the installation is completed.
The appearance of the PSU installation completed
The measured power consumption of the Bitmain Antminer S9K-14T is 1273W, the btc.com mining pool receives stable 24-hour reception, the average hash rate is 14.21T, and the measured power consumption ratio is 89.58W/T.
S9k power consumption measured
S9K hash rate chart
S9K miner status
The Bitmain Antminer S9SE 16T measured power consumption is 1378W, the btc.com mining pool receives stable 24-hour reception, the average hash rate is 16.03T, and the measured is 85.96W/T, which is 4% lower than the S9K power consumption ratio.

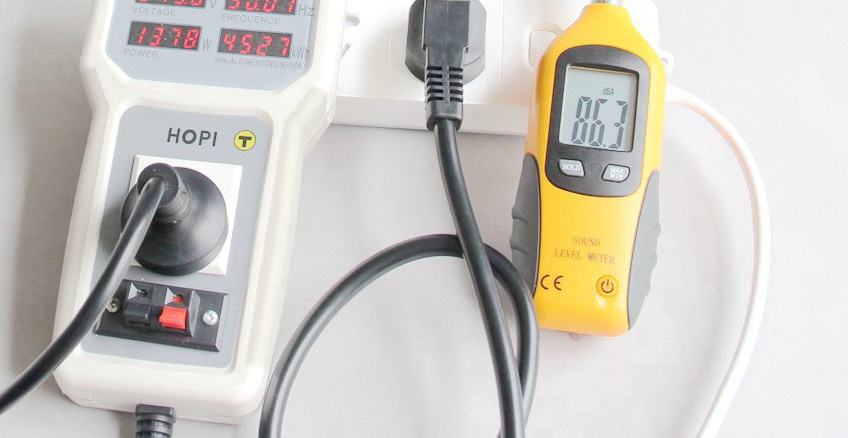

S9SE power consumption measured
S9SE hash rate chart

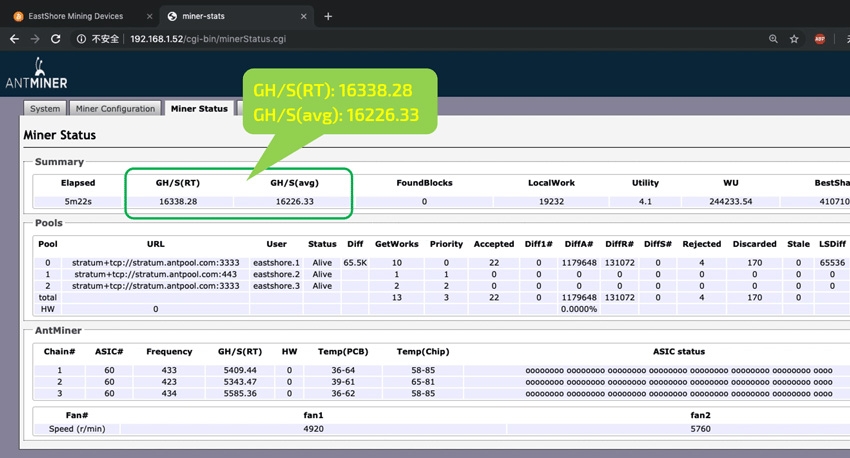

S9SE miner status
Years have passed, and the classic Antminer S9 series continues to occupy a place in the Bitcoin mining industry and is still active in the mining circle.
