Goldshell KD5 Miner Review

Goldshell KD5 Miner Review

Goldshell KD5 miner supports the Blake2S algorithm and is currently the mainstream model for mining Kadena. Kadena referred to as KDA, has always been regarded as an aristocratic coin in the currency circle because the project R&D team is from major well-known institutions. Its backstage issuer is the top American consortium, with a strong trend curve a proper second generation of stars!
KDA price trend
Goldshell KD5 is the first choice for large miners because its single-machine hash rate is as high as 18t. Compared with the existing Ibelink k1 in the market, this miner has three times the hash rate and only 2250w of power consumption. The proportion of electricity revenue is deficient, and it is worthwhile to start.

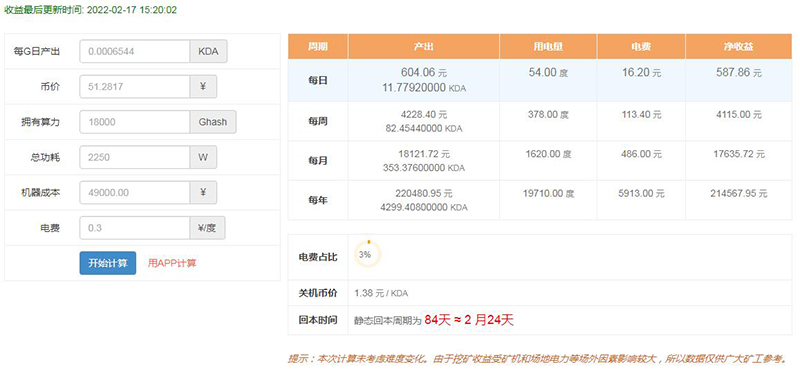

Static return cycle

static return cycle

Complete miner appearance

The KD5 body still adopts the aluminum alloy integrated design. The appearance is elegant and straightforward. The bare metal size is precisely the same as that marked on the official website.

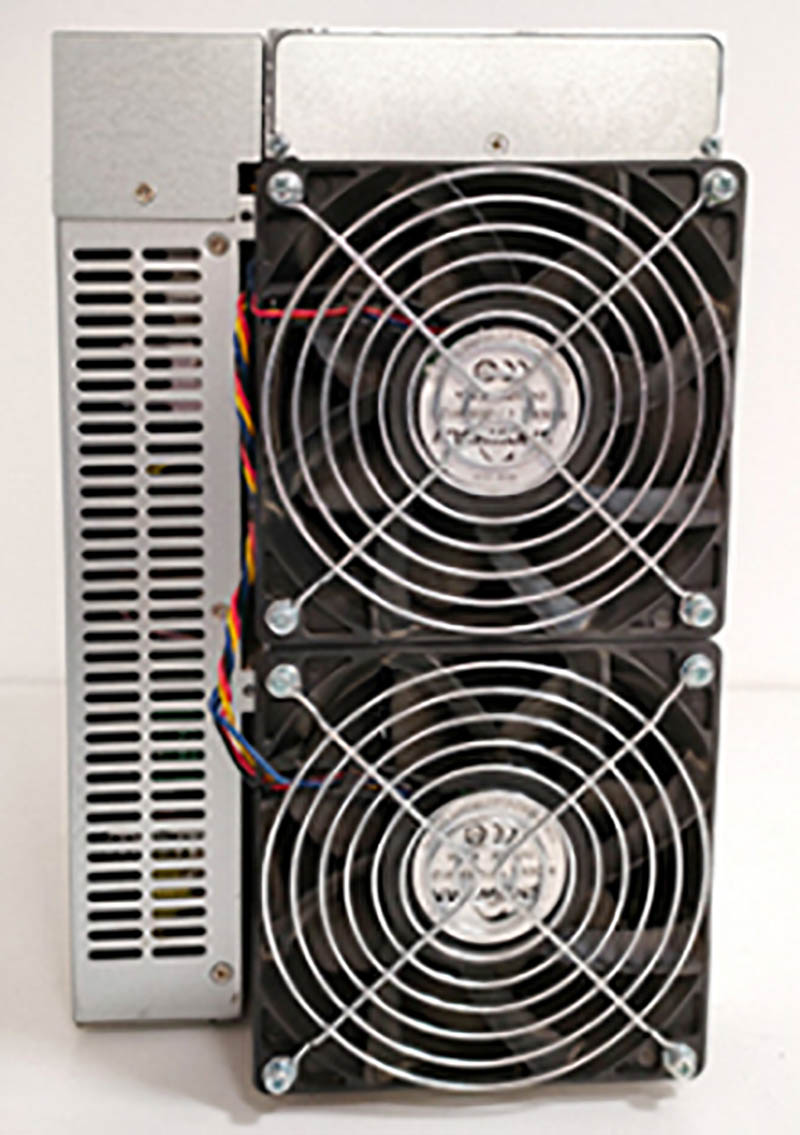

The front of the miner;
the front of the miner
The side of the miner;
miner one side
The back of the miner;
miner back
Close-up of the miner's control board interface: you can see the IP reporting button, Ethernet interface, SD card slot, reset button, and status indicator.
control board interface
Remove the top miner shell; you can see the distribution of the control board and the hash board.
control board
hash board
In the middle of the control board is the main chip.
control board main chip

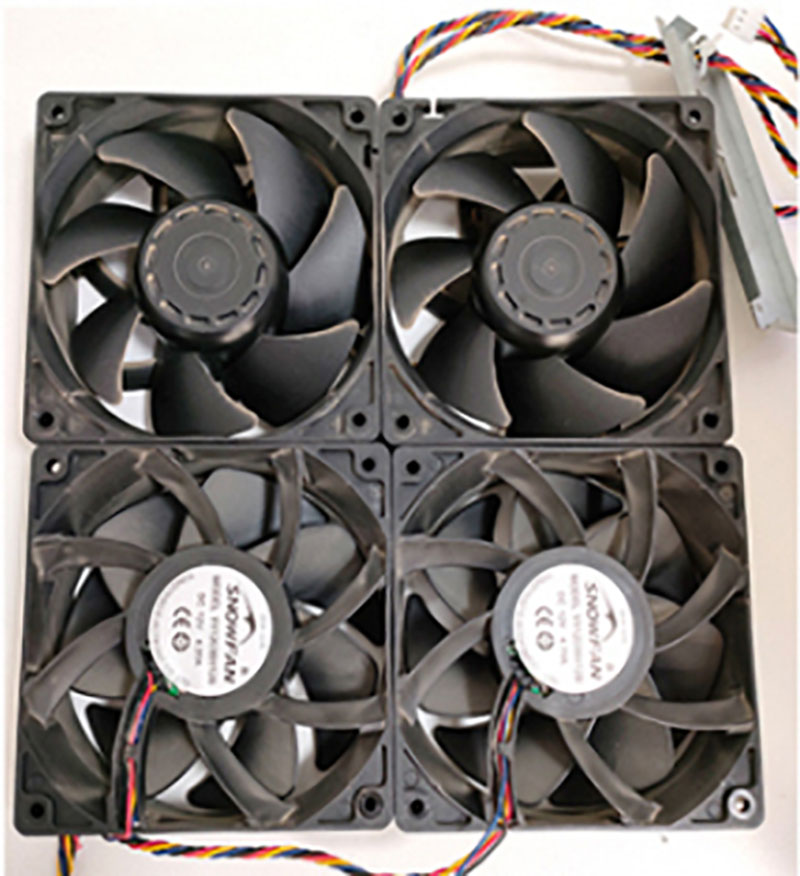

SNOWFAN fans are commonly found in high-power mining farm models and are characterized by solid heat dissipation capacity but a little noise.
SNOWFAN fans

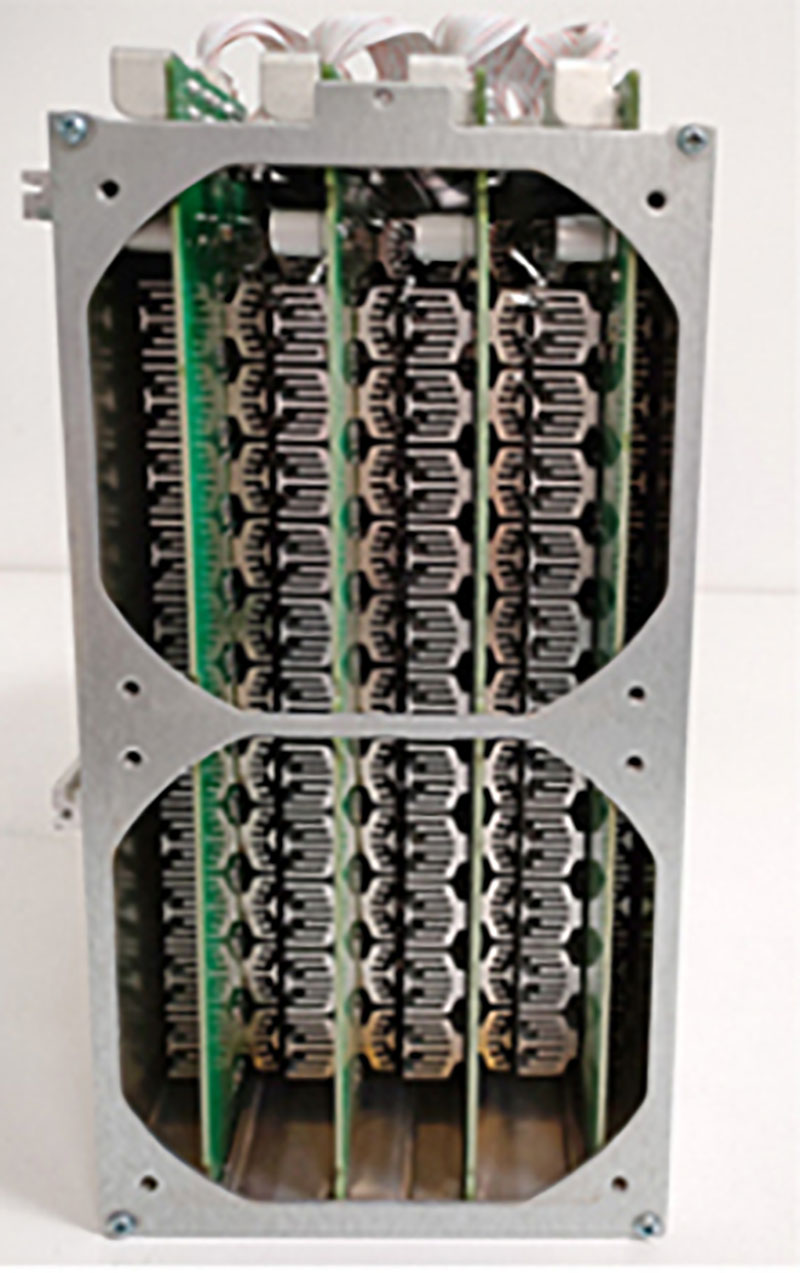

Remove the fan; you can see the distribution of the hash board more clearly.
the distribution of the hash board
hash board distribution
Vibration and noise reduction rubber rings are seen on the top of the hash board, and the small humanized details produced by Goldshell have always been in place. The close-up of the front and back of the hash board can calculate the number of hash board chips.
KD5 hash boards
The disassembly is complete, and all parts are listed.
miner parts
The miner is powered on and successfully powered on.
power on the miner
After opening the miner, start configuring the mining pool;
configuring the mining pool

choose DxPool
After running for 24 hours, let’s look at the hash rate on the mining pool side and the hash rate on the miner side respectively. The hash rate on the mining pool side is 17.68TH/S, and the hash rate on the miner side is 17.6TH/S.
mining pool side hash rate
miner side hash rate

Actual operating environment data

The air inlet temperature is 23.0℃;
air inlet temperature
The air outlet temperature is 47.6℃;
air outlet temperature
The noise of miners at close range during operation is 76.5db;
miner noise
The power consumption during operation is 2121W/h;
operation power consumption

Comparison of measured data and official website data

Project
official website data
measured data
Hash rate
18TH/S
17.68TH/S
Power consumption
2250W/h
2121W/h
Noise
≤80db
76.5db
Operating temperature
0~35 ℃
23℃

Summarize

Goldshell kd5, which was born out of nowhere, meets the needs of large miners who want to mine KDA. It has a high single-miner hash rate, a superior power consumption ratio, and a fast return cycle. So it is very worthwhile to start with. The only disadvantage is that it is too difficult to buy, but this also guarantees that the hash rate increase of the whole network will not be too high in the short term.
