Innosilicon T3-43T Bitcoin Miner Evaluation

Innosilicon T3-43T is a bitcoin miner with an official hash rate of 43T and power consumption of 2100W. After unpacking, you need to check whether the miner's warranty sticker is damaged. Then, please pick up the miner and shake it slightly. If there is a collision between metals, it is recommended to contact the after-sales service. Miners use an all-in-one design. The shell is die-casted by aluminum material, the size is 430mm*141mm*220mm, and the net weight is 8.92 kg. Compared with the Innosilicon T2T model, it is smaller and lighter in weight. The interior of the miner is also made of the previous vertical placement was changed to horizontal placement.
Innosilicon T2T-32T size
Innosilicon T2T-32T
The model, hash rate, identification code, and instructions are posted on the side of the miner. The power requirement is 200-240AC, the IP acquisition method is DHCP (automatic acquisition). The login user name and password are both admin, and press and hold the reset button for 5-10 seconds to restore to factory settings.
Innosilicon T3-43T miner
Settings button
Miner air inlet.
miner air inlet
Official website query miner power supply rated power is 2500W, power conversion efficiency ≥ 93%, use data cable to connect with miner hash board, power supply has its switch, which is convenient for miners to use and maintain. Unfortunately, the power plug and the control board network cable plug are not one the direction may have a specific impact on the upper and lower racks, and the power module of the T3 has exceeded 2000W. Therefore, buying a power cable with a 3 * 2.0mm core is recommended.
miner ports

The IP setting button functions as follows:

1. Press the IP set key for 1-4 seconds;
(1) Send the miner's IP to the "Set IP" tool;
(2) Cooperate with the "Set IP" tool to set the miner to a static IP within the range specified by the tool.
2. Press and hold the IP set button for 4-15 seconds, the static IP will become a dynamic IP, and the mining pool settings will be restored to the default settings;
3. Press and hold the IP set button for more than 15 seconds to switch the miner IP to a static IP and restore the IP to the default IP 192.168.1.254.

Reset key function:

Press the reset button to restart the miner, long press for 5-10 seconds to restore to factory settings.

Innosilicon T3-43T Installation Setup

The factory default of the miner is DHCP mode; you can log in to the local router to find the IP address of the miner named "lnnominer" or use the IP scanning tool to find the IP of the miner.

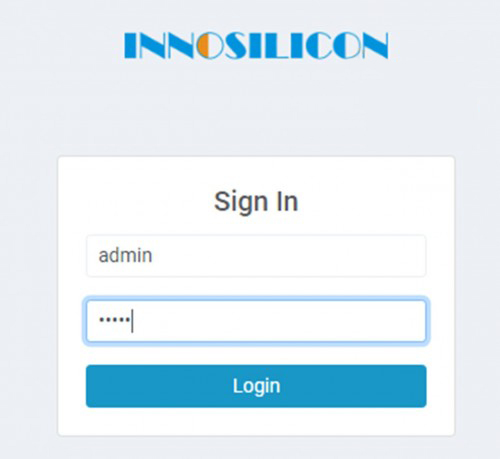

sign in interface
After logging in, you need to make two modifications. One is to modify the mining pool settings so that the miners mined can enter your wallet smoothly, and the other is to modify the operating mode of the miners.
Click "Settings/Pools" to enter the mining pool setting page, modify the mining pool address and miner name in the "Pool 1" main mining pool, password "1234" or "X," and then modify the backup mining pools "Pool 2" and "Pool 3" mining pool address and miner name, click "Update Pools" after setting to update and save the mining pool, and the miner will automatically restart.
Select the operation mode of the miner. Innosilicon has preset 4 operation modes for the T3-43T, making the miner operating in 4 modes: low energy consumption, balanced, factory (default), and high hash rate, which are convenient and straightforward. Miners can freely choose according to the situation of the mining farm. After selecting, click "Save" to save.
In the "Settings" setting page, in addition to modifying the mining pool, you can also modify the user account information. You can also modify the user name and password to prevent others from modifying the mining address and miner name. Next, enter the "Settings/Network" page, and modify the IP address as dynamic or static as needed. After the modification is completed, click the "Update" button on the lower side to save the currently modified settings.
miner operation data
After the power is turned on, the standby power consumption is about 25W, and the startup noise is 69.5 decibels. Next, turn on the power supply and turn on the switch to check whether the two fans of the miner can work normally. If the fans are damaged or cannot work normally, they should be replaced in time.

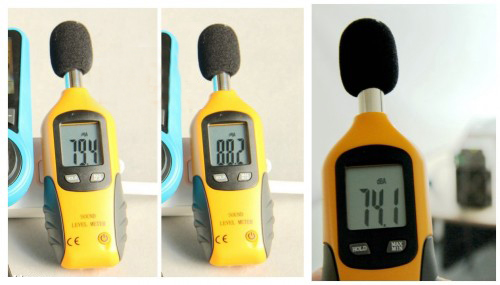

noise test

Temperature

The temperature of each part of the miner is as follows. When the air inlet temperature is 28 degrees, the temperature of the air outlet of the miner is 45.6 degrees, and the peak value is 48 degrees. The temperature of the power outlet is about 35 degrees, and the temperature of the power supply and the miner connecting piece is about 32 degrees.
mining pool information
Mining pool reception.
miner power consumption test

Summarize

• The actual measured hash rate of miners reached 42.98T, which is currently the most advantageous in the hash rate ranking among spot miners in the market;
• Miners have adopted innovative, dynamic frequency adjustment technology, with a comprehensive power consumption ratio of about 49.8W/T, leading the industry;
• The miner console has 4 preset adjustable mining modes that can be switched freely, which can appropriately reduce power consumption or properly overclock, but it should be noted that the high hash rate mode has specific requirements on power supply and cables;
• Smaller and lighter in size and weight than T2T-32T, with better control of noise level;
• Both the front and rear fans of the heat dissipation are equipped with fan protection nets, which ensures the safety of the mining production process;
• After a 24-hour test on miners, the backstage page curve and the mining pool's receiving hash rate curve are stable;
• The backstage control page graphically displays the main parameters of the miner's operation, and the real-time hash rate values of the three hash boards are displayed separately, and the operation status is clear at a glance;
• Miners use an all-in-one design, which is easy to use;
• Innosilicon T3-43T takes into account the anti-scratching of the data cable and adds the night eye protection function to the control page. These are more thoughtful designs, but the bottom anti-skid pad is missing. It is recommended to keep it.
