How to use the submerged liquid - cooled miner box?

How to use the submerged liquid-cooled miner box?

Miners need to perform high-density operations to obtain virtual currency. Therefore, the hash board will generate a lot of heat during the operation of the miners. Suppose the heat cannot be discharged in time, the miners run in a high-temperature environment, which may cause the miners to shut down for protection and short-circuit the internal circuit or even burn out essential components. As the difficulty of obtaining virtual currency continues to increase, the hash rate required by miners continues to increase, and the heat generation also continues to increase.
As an essential cooling kit for cooling miners, the immersed liquid-cooled miner box is deeply loved and praised by most miners in the market. I will also briefly introduce its working principle and usage instructions for your reference.

1. The working principle of the submerged liquid-cooled miner box

The miner's hash board transfers heat to the oil during use, and the oil exchanges heat through the heat exchanger to keep the miner's low temperature running. The submerged liquid-cooled miner box dramatically improves the heat dissipation efficiency of the miner. It dramatically optimizes the energy efficiency ratio of the miner without the need for a fan.

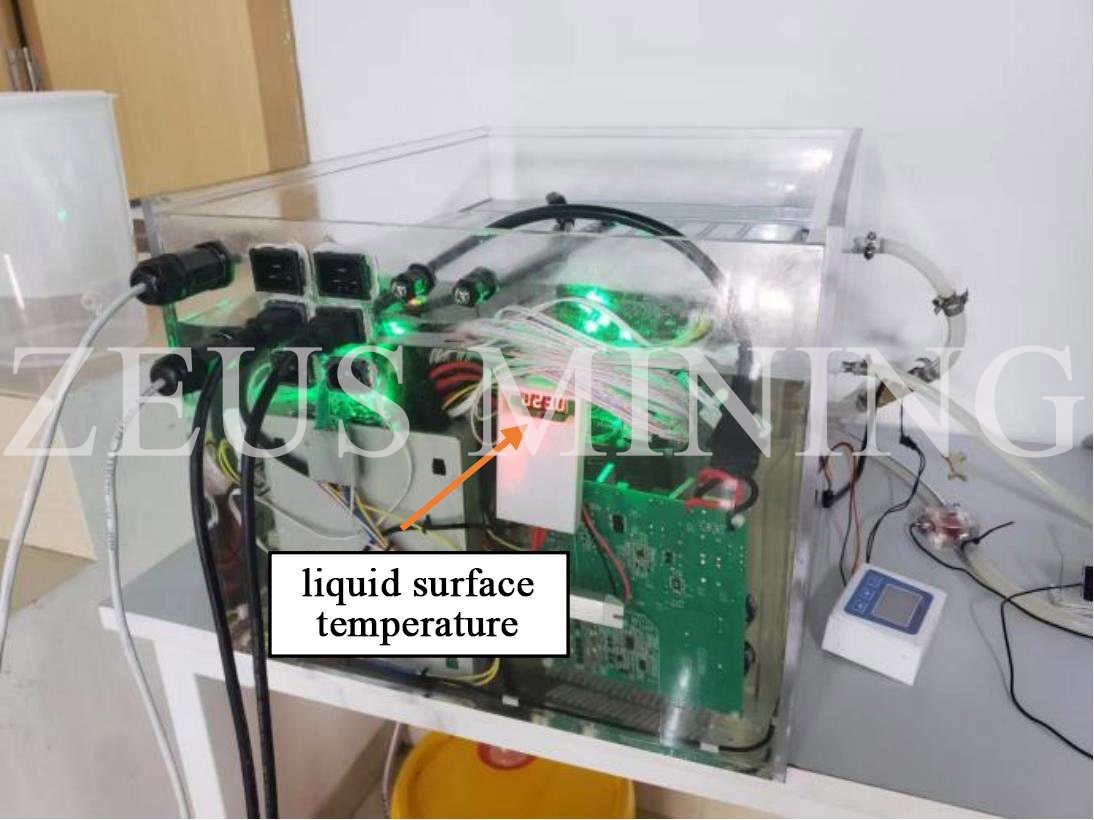

liquid surface temperatured

working principle diagram of miner box

2. Parameter description of submerged liquid-cooled miner box

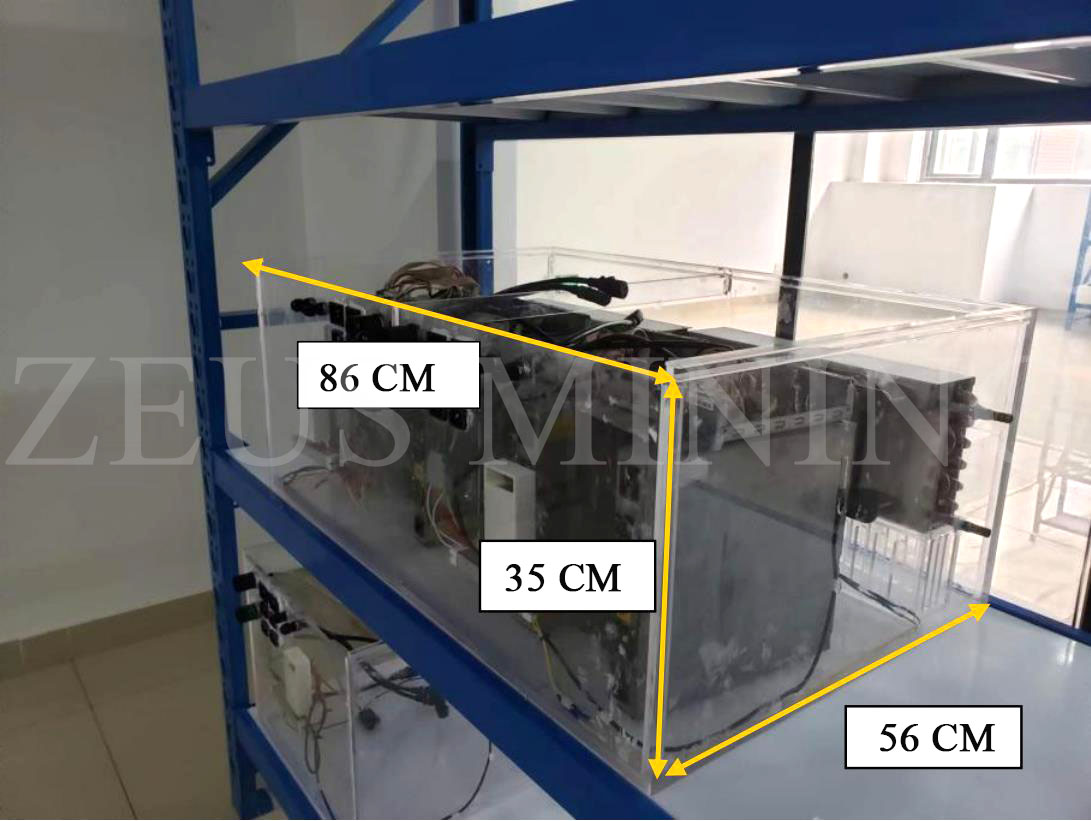

miner box size
Transformer oil capacity required for standard miner box: 78L;
Available transformer oil types: Great Wall No. 10 transformer oil, No. 25 transformer oil, or Dow Corning DC dimethyl silicone oil;
Parts description: The miner box includes two temperature controllers, heat exchanger components, several interfaces, etc. In addition, customers need to purchase cooling oil, circulating water pump, cooling tower, and other items;
Description of miner box capacity: The number of miners that can be placed is different according to different miner models;
Models that can accommodate 4 miners, such as Antminer S19, S17, T17, S17+, S15, and S11;
miner box placement diagram

Models that can accommodate 8 miners, such as Antminer S9, Whatsminer M21S, and Whatsminer M21.

3. Description of plug-in potential on the front panel of the submerged liquid-cooled miner box

front panel plug-in potential description
Front panel controller description:
front panel controller description

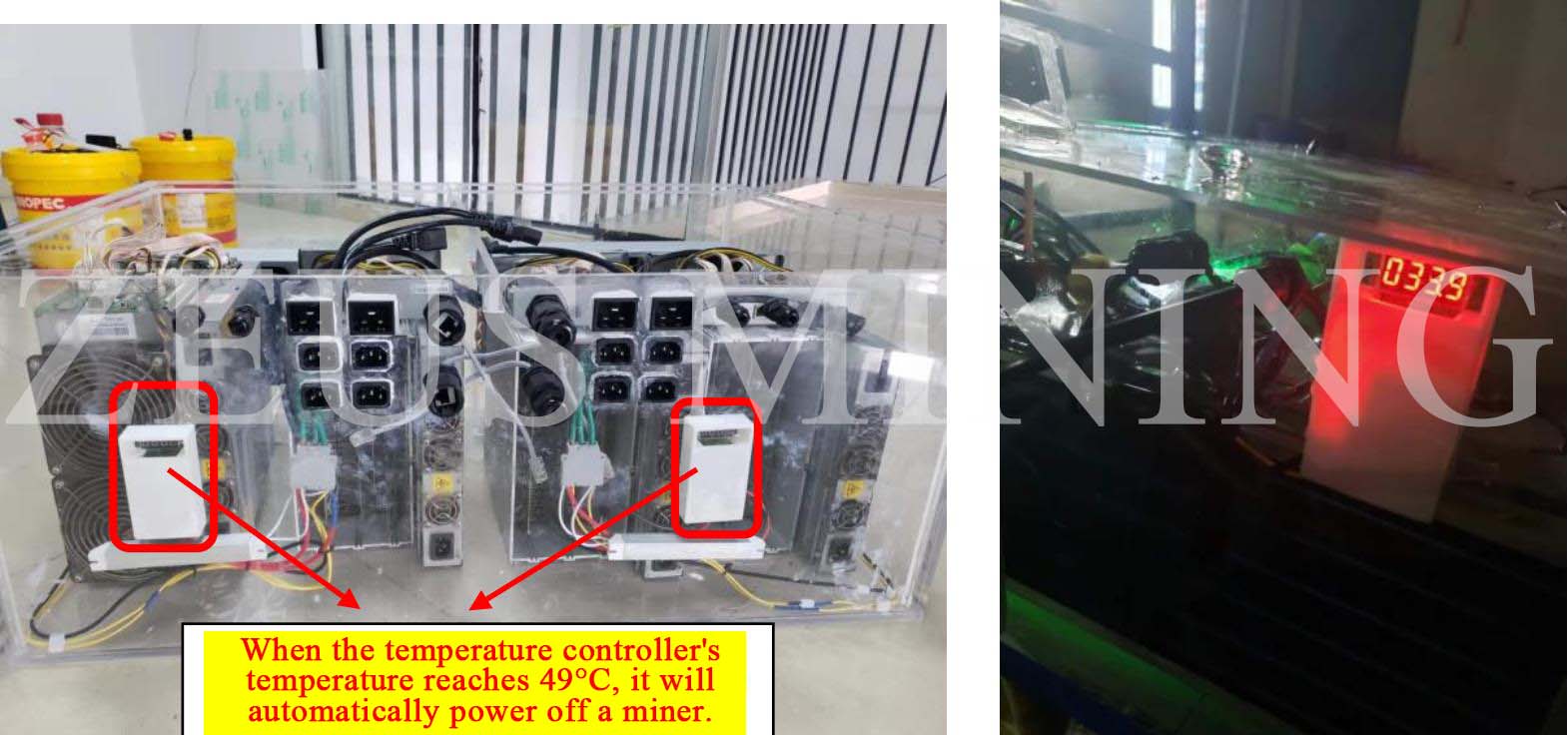

When the temperature controller of the miner box reaches 49°C, a miner will be automatically powered off. This temperature is for this product only and tested for stable operation by all miners.
Note: One controller can only control one miner; if you need to control multiple miners, you must add extra money to choose.

4. Description of the external water source of the submerged liquid-cooled miner box

Method 1: If there is well water or river water around the site, only a submersible pump is needed.
description of external water source
Method 2: When there is no water source, it is necessary to use the cooling tower to circulate water.

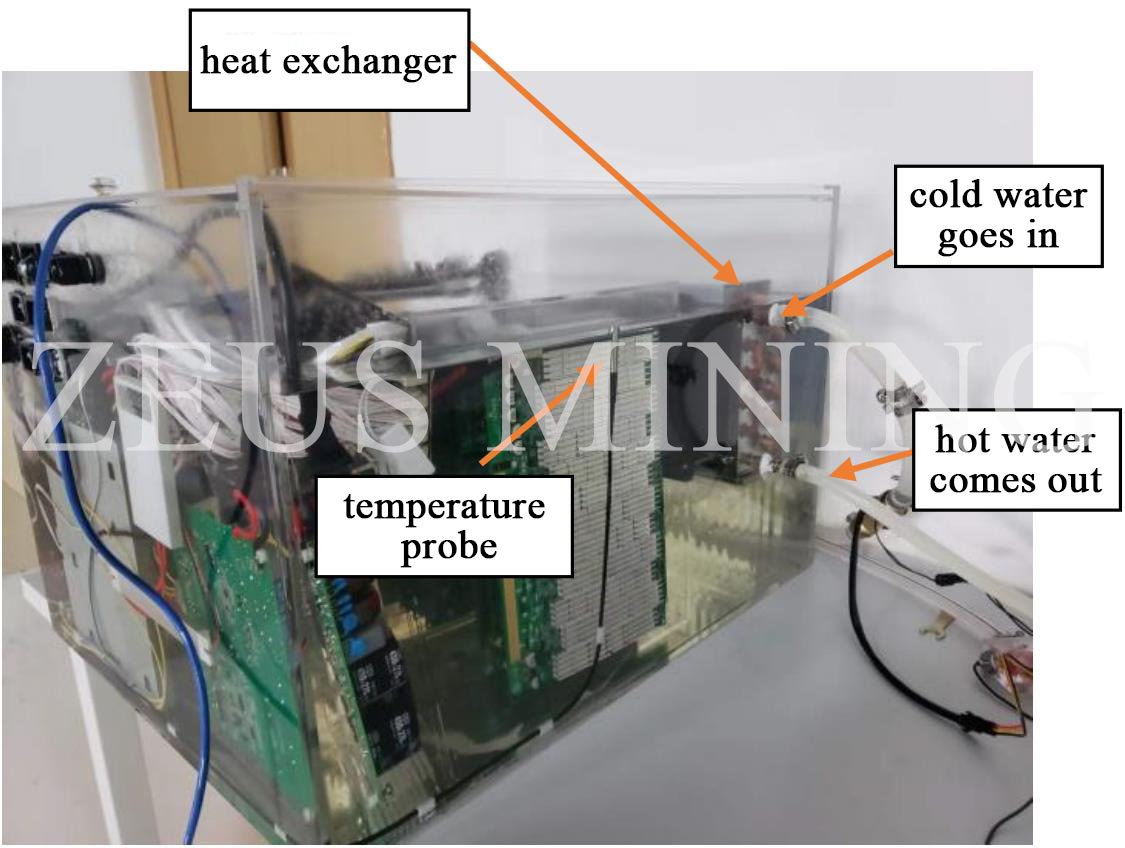

schematic diagram of circulating water in cooling tower
Cooling towers are divided into 3T, 5T, 10T, 20T, 100T, and other models.
Special note: After testing, it was found that the temperature of most miners was the most stable when the flow rate was 3L/min (single unit) and the average temperature was 38°C; when the flow rate was 2L/min, the temperature of the liquid-cooled miner box was 42°C; The faster the flow rate, the lower the temperature.
According to the flow rate of 3L/min, a conventional 10T cooling tower can drive 56 miners.

5. Reference instructions for the experimental data of the submerged liquid-cooled miner box:

1) Flow rate test
When the test liquid volume is 80L, the test environment temperature is 31℃, and the test model is 4 Antminers S17+ 74T, the following results are obtained:
The temperature reached a stable value when the flow rate ran at 6.9L/min for one hour. The temperature of the upper liquid surface was 38.7°C, the circulation temperature was 34°C, and the average temperature of the backstage PCB was 55°C.
After running for one hour at a flow rate of 4 L/min, the upper liquid surface temperature was 37.8 °C, and the circulation temperature was 34.7 °C.
After running for one hour at a flow rate of 3 L/min, the upper liquid surface temperature was 39.9°C, and the circulation temperature was 34.9°C.
When the flow rate was 2L/min, the upper liquid surface temperature was 42.6°C, and the circulation temperature was 37.8°C.
We found that the PCB board backstage temperature began to rise, and the optimal circulation flow rate was 3L/min.
2) About overclocking
For many miners, they have not modified the heat dissipation silicone grease, and immersion in the oil will cause a dissolution reaction. The original silicone grease will dissolve in about 15 days.
We need to use custom thermal grease; its service life is about 3 years.
customized thermal grease
3W is a common model, and 8W is a custom heat-conducting model, overclocking heat conduction and cooling down quickly.
A modified silicone product is not required if the original miner does not have thermal grease. For example, the original Antminer S17, S15, S11, S9, S19, and some Whatsminer series require modified silicone gaskets; otherwise, it is easy to cause damage to the hash board.
In addition, we provide clients with services such as remote instruction, miner testing, and ash cleaning.
