ETH Miner Antminer E3 Evaluation

In April 2018, Bitmain, a well-known cryptocurrency miner manufacturer, launched another new algorithm miner, Antminer E3, which can be used for cryptocurrency mining with the Ethash algorithm. Now let's take a look at the evaluation of Antminer E3!

Product basic data

Name
Antminer E3
Algorithm
Ethash
Weight
10.5kg
Size
399.5mm*130mm*328.15mm
Rated hash rate
190MH/S
Rated power consumption
760W
Antminer E3 appearance
First, let's take a look at the true face of Antminer E3! This miner is very different from other series of ant mining machines. The most significant difference is that it is very high! It is about twice as high as other miners. This is because the system process of the Antminer E3 is complex, so it needs to be designed into an oversized hash board, and the appearance of the miner will also look taller.
oversized hash boards
Another difference is that the front of the E3 is equipped with two cooling fans, and there is no cooling fan behind the miner, which is replaced by a honeycomb cooling network.
In terms of hash boards, E3 miners also use three hash boards. So from the top of the miners, E3 has three hash boards and one control board.

Install test

The power supply used in this test is Antminer APW7. The power supply can be purchased on the ZEUS MINING official website. For the mining tutorial of Antminer E3, it is recommended to refer to Antminer E3 Manual.

Noise and heat

The test site is a conference room with about 30 square meters, and the room temperature is 25 degrees. Heat and noise tests are performed after the miner runs for a while.
noise test
When there is no miner in the room, the noise is 50 decibels. When the miner is turned on, the measured noise of the miner is 74.4 decibels at a distance of 10cm from the miner and 67.7 decibels at a distance of 1 meter from the E3 miner.

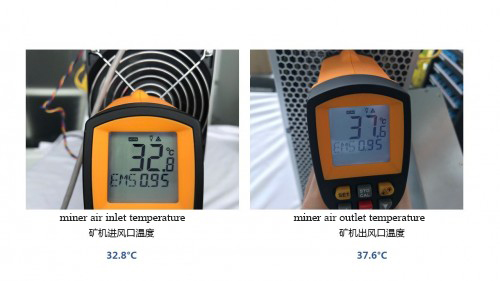

miner's temperature test
After stable operation for a while, the miner's air inlet temperature was measured to be 32.8 degrees, and the air outlet temperature was 37.6 degrees.
hash board temperature
In the miner's backstage, it can be seen that the temperature of the E3 hash board is about 47 degrees, and the chip temperature is about 58 degrees. The front fan speed is 3000, and the miner is running normally!

Hash rate and power consumption

E3 hash rate curve
Hash rate curve when Antminer E3 mining ETH
power consumption of Antminer E3
Antminer E3 power consumption
The official standard hash rate of Antminer E3 is 190MH/s. In the actual test, according to the data from the backstage of the mining pool, the average one-day actual hash rate is about 200.48MH/s, which is slightly higher than the standard value. The official standard power consumption of Antminer E3 is 760W, and the power consumption in the actual test is 733W, which is slightly lower than the standard value. According to the actual tested hash rate and power consumption, the energy consumption ratio is about 3.7W/M.

E3 Mining ETH in AntPool 24 hours earnings

As of February 12, 2022, according to the PPS mining revenue model of AntPool, the revenue of one E3 24 hours a day is 0.0026478 ETH, equivalent to $7.79;
Calculated at US$0.079 per kilowatt-hour, the electricity cost of E3 is about US$0.91 per day, and the profit of mining ETH is about US$6.88 per day.

Evaluation summary

Name
Antminer E3
Algorithm
Ethash
Weight
10.5kg
Size
399.5mm*130mm*328.15mm
Rated hash rate
190MH/S
Rated power consumption
760W
The above is the complete evaluation of E3. In general, miners want to mine ETH. Compared with GPU miners, it is recommended that you choose Antminer E3. Not only is E3 lower in price than GPU miners, and its power consumption is significantly lower than GPU miners.
The content and pictures of this article are from the Internet, compiled and edited by ZEUS MINING.
