Avalon A1246 Miner Evaluation

Avalon A1246 Miner Evaluation

In September 2020, Bitcoin miner Canaan released the latest Avalon series high hash rate Bitcoin miner Avalon A1246. The Avalon A1246 miner is the eleventh generation product of the Avalon series of miners based on Canaan's nearly ten years of experience in R&D and production of bitcoin miners.
Avalon A1246 Bitcoin miner official parameters:
Hash rate
90TH/s
Power consumption
3420W
Energy efficiency ratio
38J/Th
The following brings you the latest Avalon A1246 miner evaluation:

1. Miner appearance

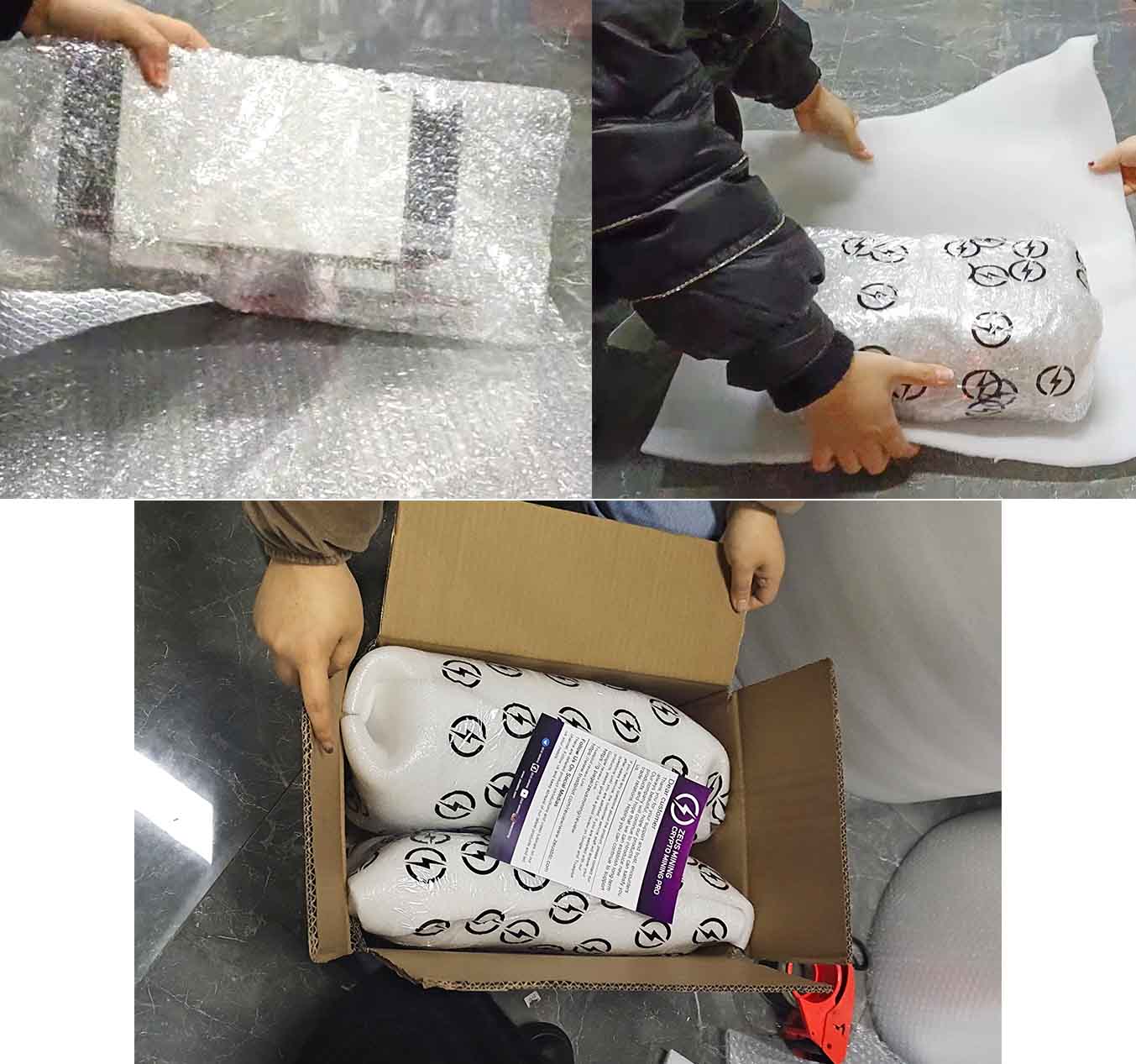

Avalon A1246 adopts an industrial packing box packed with a bubble film plastic pad inside the miner and wrapped with an EPE foam pad outside, with double-layer protection, which has an excellent shockproof effect.
miner package
There is a miner and a miner power cable (16A plug) in the box, and the cable length is about 1.5 meters.

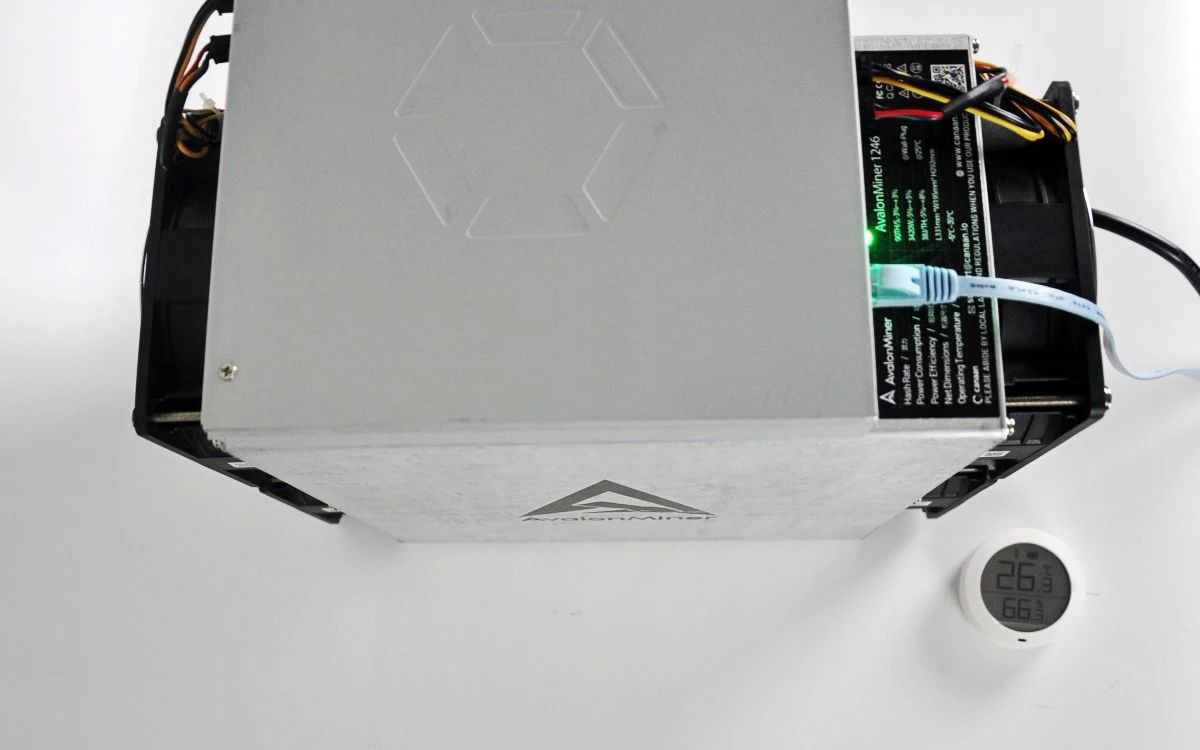

Avalon A1246 appearance

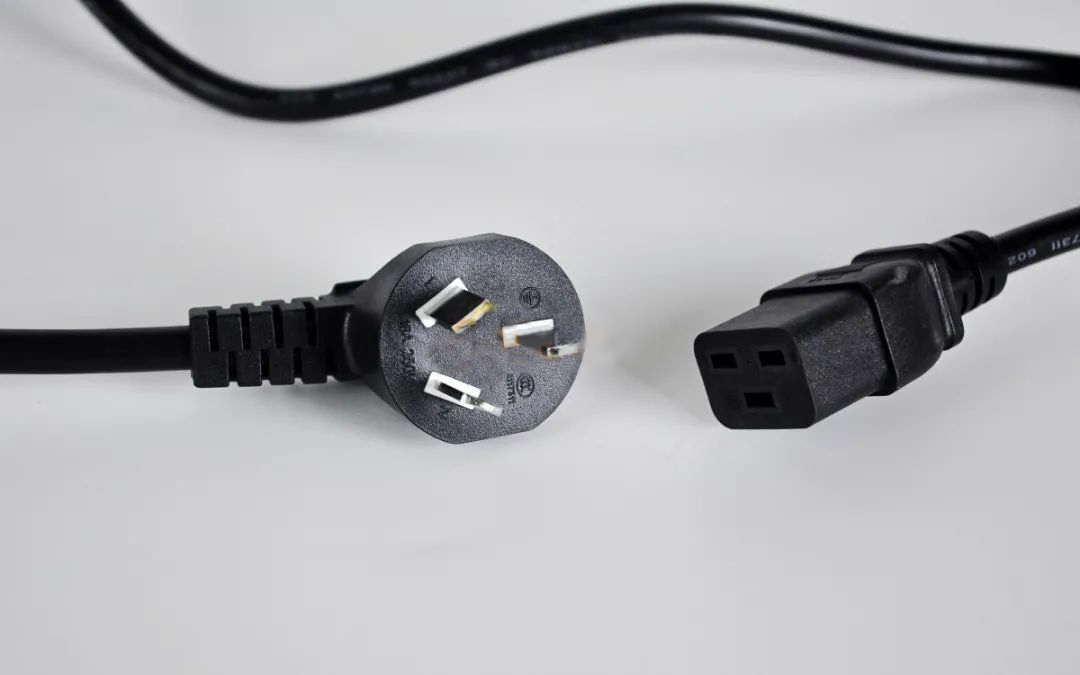

miner power cable
The miner integrated power supply is located on the right side of the miner front. Power information is detailed on the right panel.
miner PSU
miner power information

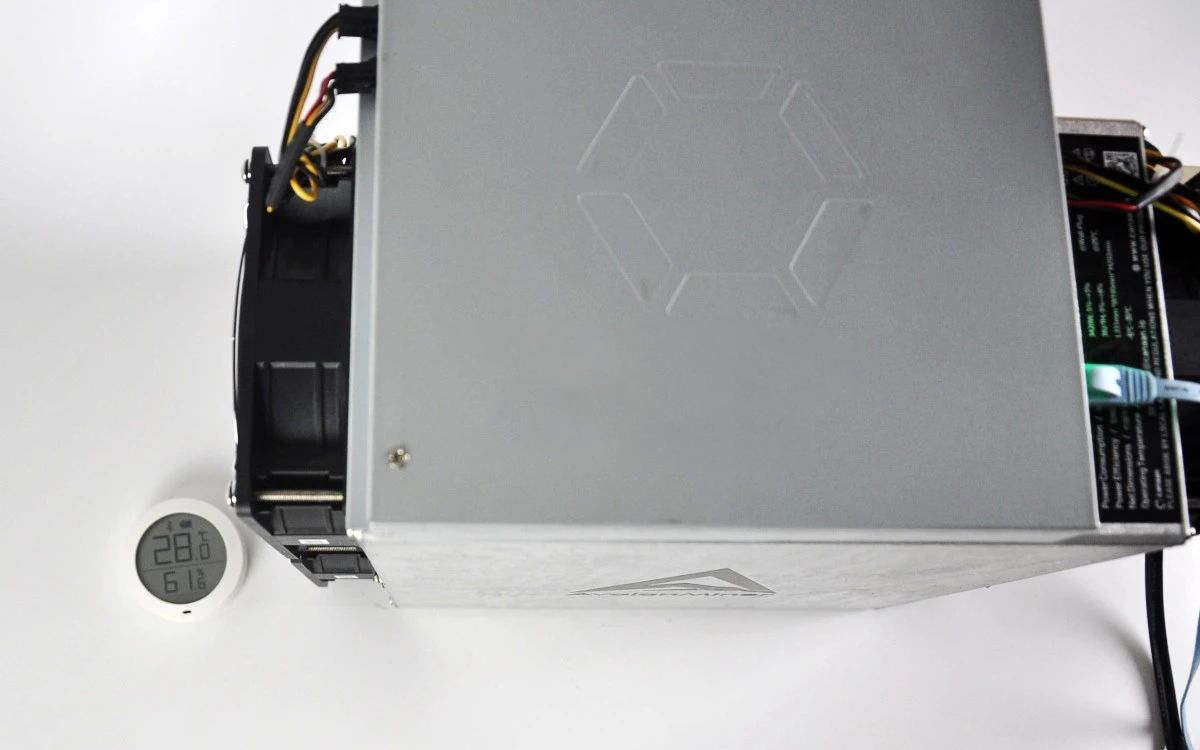

The miner is rectangular, and the chassis is made of new alloy material, which is thick and sturdy and supports horizontal and vertical placement, which is convenient and flexible.
miner shape
The Avalon logo of the miner is located on the side of the miner panel.
Avalon logo
The upper part of the front of the miner from left to right is the system reset button (RESET), the network cable interface, the three-color status indicator (red, yellow, and green), the function button (FUNC), and the fan power interface.
miner ports
On the lower part of the front of the miner, you can see the front dual cooling fans of the miner. The specifications are two four-pin socket diameter 12CM fans (12v4.5a), with a protective cover outside, and the air is fed from this side.
dual cooling fans
The cooling fan wire and interface are four-wire (four-pin), and the contact position is snapped.
cooling fan wire
The top of the miner is the control board. The control board adopts the self-developed Kanzhi K210 dual-core 64-bit AI chip, widely used in intelligent electronic equipment. In addition, the main control chip has a built-in encryption algorithm to prevent viruses and theft.
miner top
The back of the miner is a rear dual cooling fan; the specification is two four-pin socket diameter 12CM fans (12v4.5a), with a protective cover, the air is discharged from this surface.
back of miner
Miner's bottom.
top of miner
Miner physical parameters.
miner physical parameters

2. Installation and debugging

Before installing and running, you need to do the following preparations.
1) Each miner should prepare a high-quality RJ45 interface network cable; too poor network cable transmission data is easily disturbed and affects the stability.
2) The operating power of the A1246 high hash rate miner is relatively high, reaching more than 3000w, and the miner is equipped with a 16A power cord. Therefore, it is necessary to provide a socket with a 16A socket. Since the miner is running for a long time and the power interface is heated for a long time, please choose a socket with reliable quality from a compliant manufacturer.
3) It is inevitable for miners to bump during transportation. Before installing the miners, pick up the miners and shake them a little to see any abnormal noise inside the miners. If there is any abnormal noise, the spare parts may fall off. Contact the manufacturer for after-sales service in time.
A1246 installation is very simple, connect the network cable and power supply.
network cable and power supply

3. Debug

When the power is turned on, the miner will enter the working state immediately, and the status indicator will be solid green.
turn on the miner
There are two ways for miners to set up mining. The first is to use the official cluster management software settings (support batch configuration of miners). Software and manual download page URL: https://canaan.io/service/447
software download page
user manual download page
The second is to use the browser of the Internet access device (mobile phone, computer) in the local area network to enter the miner background to set.
After the miner is started by default, the IP address is automatically assigned. First, find the latest IP device connected to the LAN to be the miner. Then, open the browser and enter the IP address of the miner to enter the miner background.
First, come to the login page, you can see the Avalon logo and a password login box; the default factory user name and password are "root."
login page
The A1246 mining setup is straightforward, just one step: set up the mining pool.
mining pool setting
Other pages in the backstage.

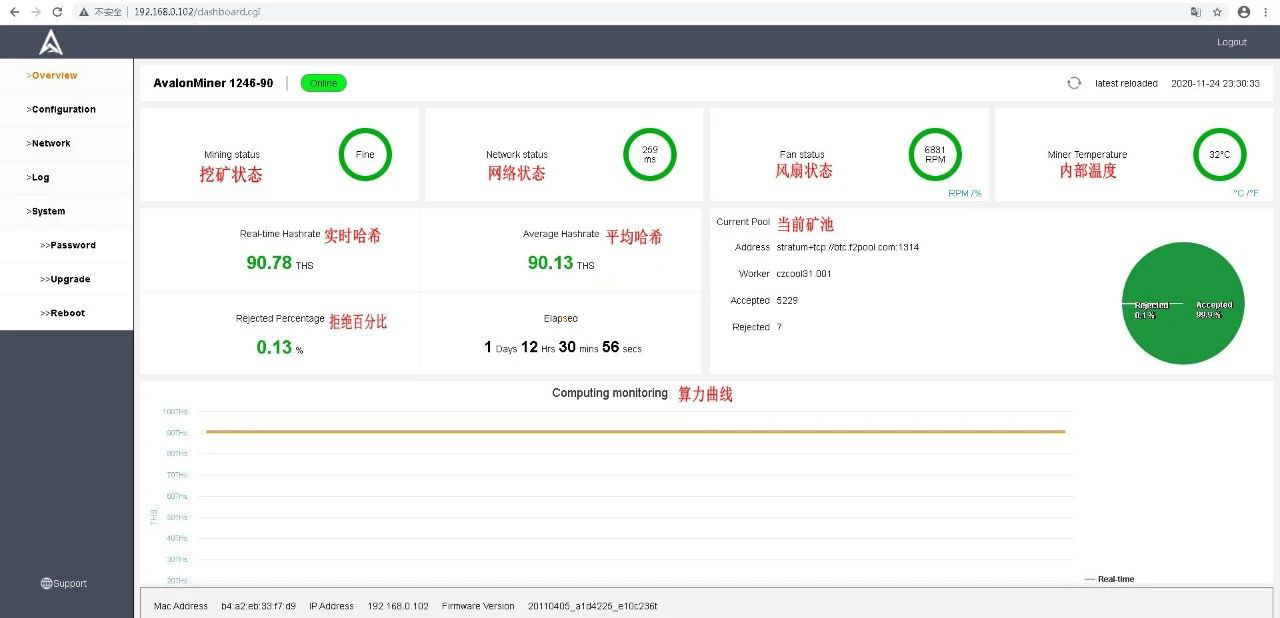

miner backstage temperature

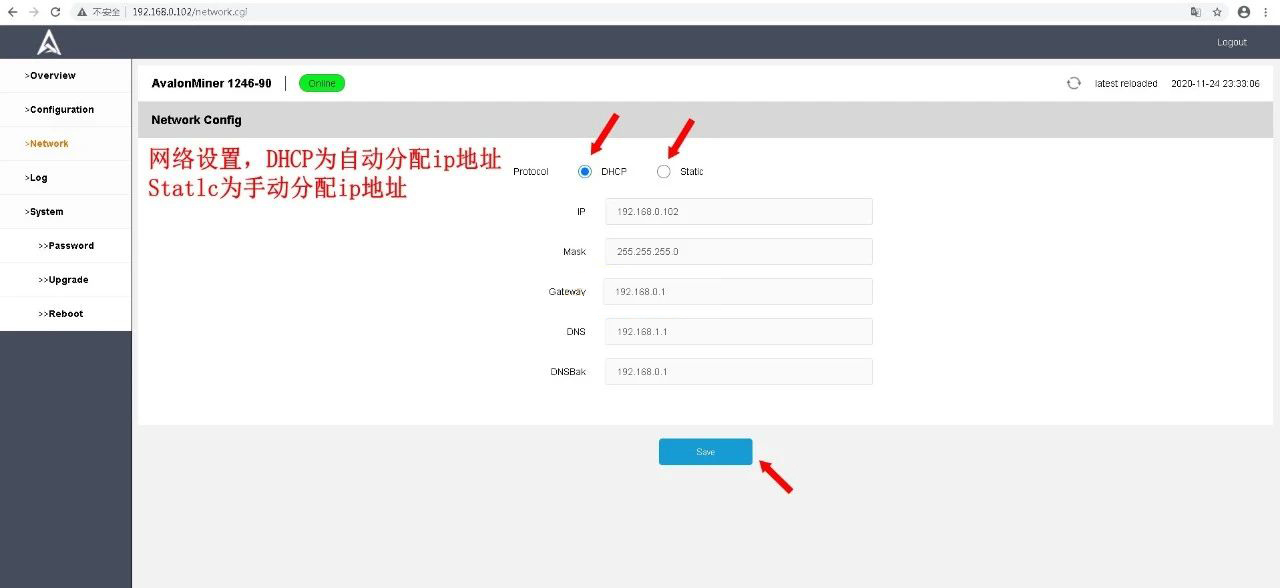

IP setting

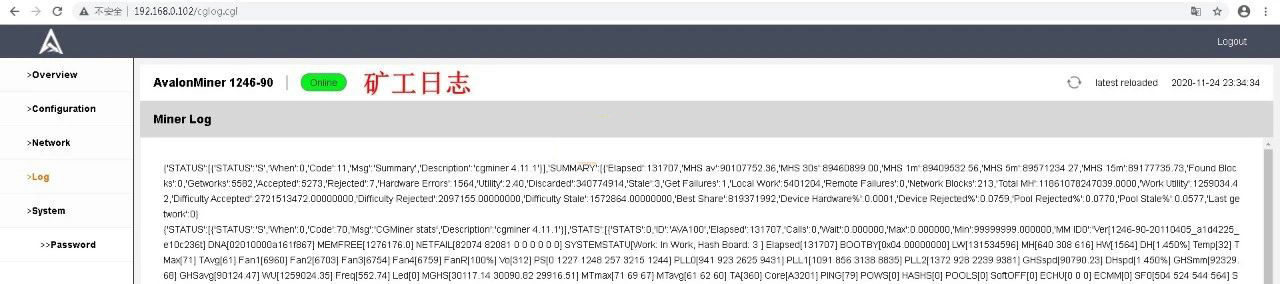

miner log
password setting
firmware upgrade

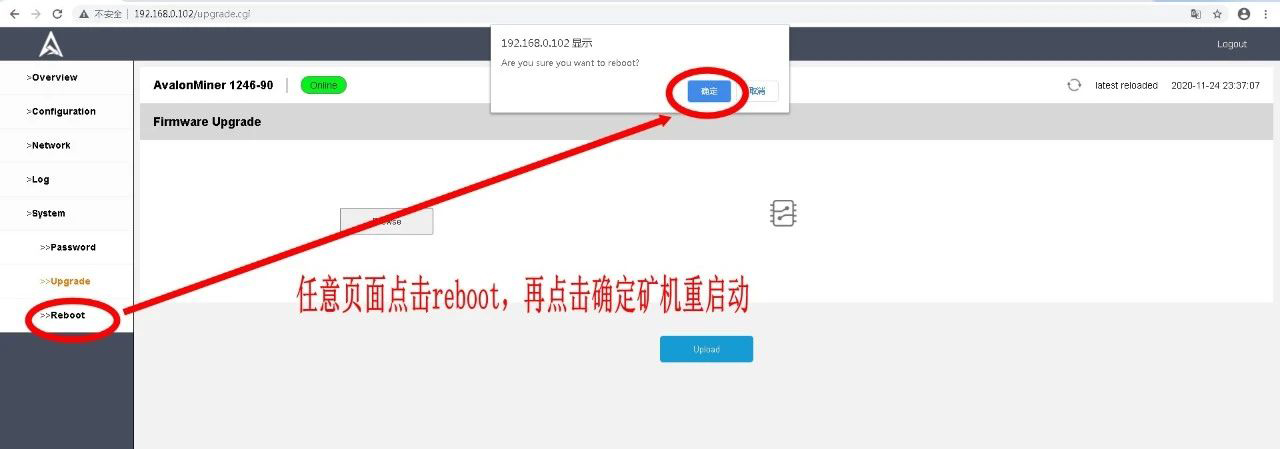

reboot miner

4. Run the test

The ambient temperature for this evaluation is nearly 30 degrees. A1246 does not need complicated settings such as frequency, voltage, fan speed, etc. The level of plug-in and ready-to-use has been achieved.
After the miners started, the hash rate quickly reached 90T in a short period, the fan speed was about 6800 rpm, and the average hash rate for a long time was 90.05T. The maximum hash rate is nearly 105T, the minimum hash rate is about 78T, and there is no significant fluctuation in long-term operation.
hash rate for a long time
hash rate fluctuation
Under normal working conditions of miners, the hash rate is about 90T, and the measured power is about 3508w.
power measured
In terms of noise, when the miner is running stably, and the fan speed is about 6800 rpm, it is about 93.1dBa measured at a distance of 20CM from the miner.
noise measured
In terms of temperature, when the backstage temperature shows that the inside of the miner is 31°C, it is 26.3°C at the air inlet.
miner backstage temperature
air inlet temperature
The temperature at the air outlet was measured to be 28°C.
air outlet temperature

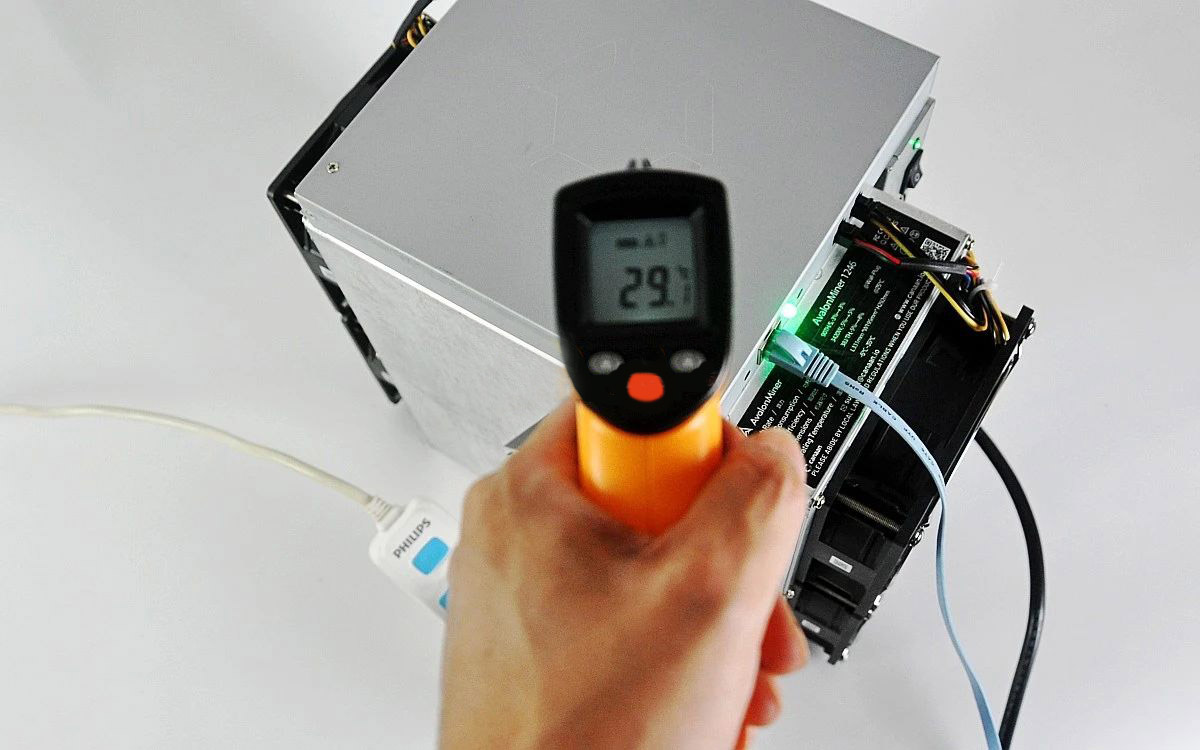

The miner's shell temperature measured 29°C.
miner's shell temperature

5. Summary

Avalon1246 evaluation summary
Project
Parameter
Miner model
Canaan Avalon1246
Mining algorithm
SHA256
Supported currencies
Bitcoin, Bitcoin Cash
Power supply
Electric Mihara PSU3300- 1PLUS1
Physical size
330MM*190MM*290MM
Miner weight
13.3KG

Project test
Test value
Whole miner power consumption
3508w
Running hash rate (24 hours+)
90.05T/S
Power consumption ratio
38.8J/T
Ambient noise value
39dba
Miner operating noise value
93.1dba
Miner air inlet temperature
26.3°C
Miner air outlet temperature
28°C
The temperature difference between the front and rear air outlets of the miner
1.7%C
Chassis temperature when the miner is running
29.1°C
1. The Avalon1246 miners have solid workmanship and come with their power supply. The miners can be placed horizontally and vertically to facilitate the large-scale deployment of mining farms. In addition, the 90T super-large hash rate allows a more significant hash rate to be deployed in a smaller space.
2. Extremely simple installation, plug-in and ready to use, one-step setup, many miners can cooperate with cluster software, which is convenient for operation and maintenance.
3. The control board has a built-in AI chip with strong security performance. Combined with the operating system, it can automatically identify malicious viruses and prevent miners from being stolen.
4. Stable operation, high-efficiency heat dissipation with front and rear fans, self-adjusting mining guard system, long-term operation hash rate reaches 90T, the same as the official parameters.
5. Ultra-low energy consumption ratio, high-performance 38.8J/T energy consumption ratio, is the leading international position.
6. The mining experience of the Avalon miner A1246 is impressive, with simple operation and good running stability.
The content and pictures of this article are from the Internet, compiled and edited by ZEUS MINING.
