What is the difference between Antminer S9 SE and S9?

What is the difference between Antminer S9 SE and S9?

Antminer S9 is one of the miners most familiar to miners. Once it was launched in 2016, it became a popular miner globally. However, thinking that when the Antminer S9 went on sale, it was often sold out in seconds, which can be said to be "hard to find." After Antminer S9, Bitmain has successively launched AntminerS9i, Antminer S9j, and other upgraded products, constantly presenting better miners for miners.

To help you understand the difference between Antminer S9 SE and Antminer S9, today, we will lead miners to see how they are different.

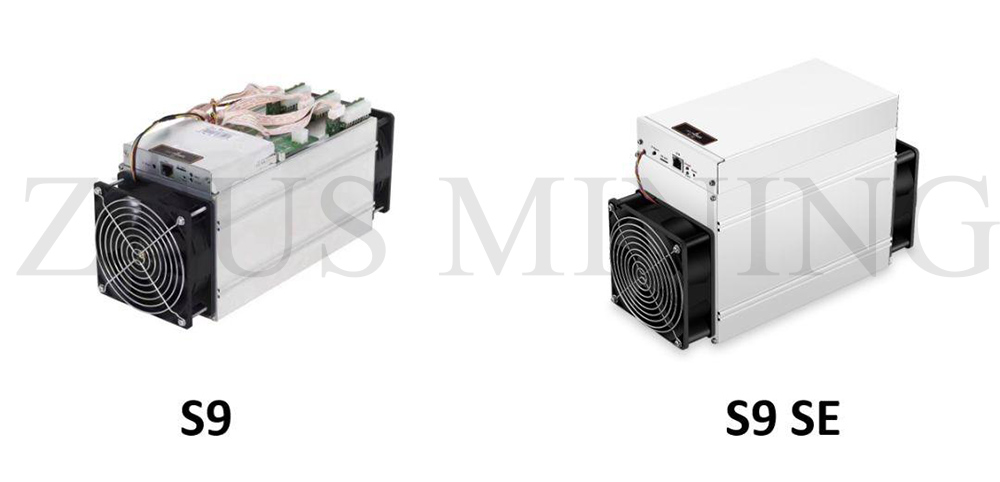

Product appearance comparison

First, we start with the appearance structure and identify the difference between the two from the appearance.

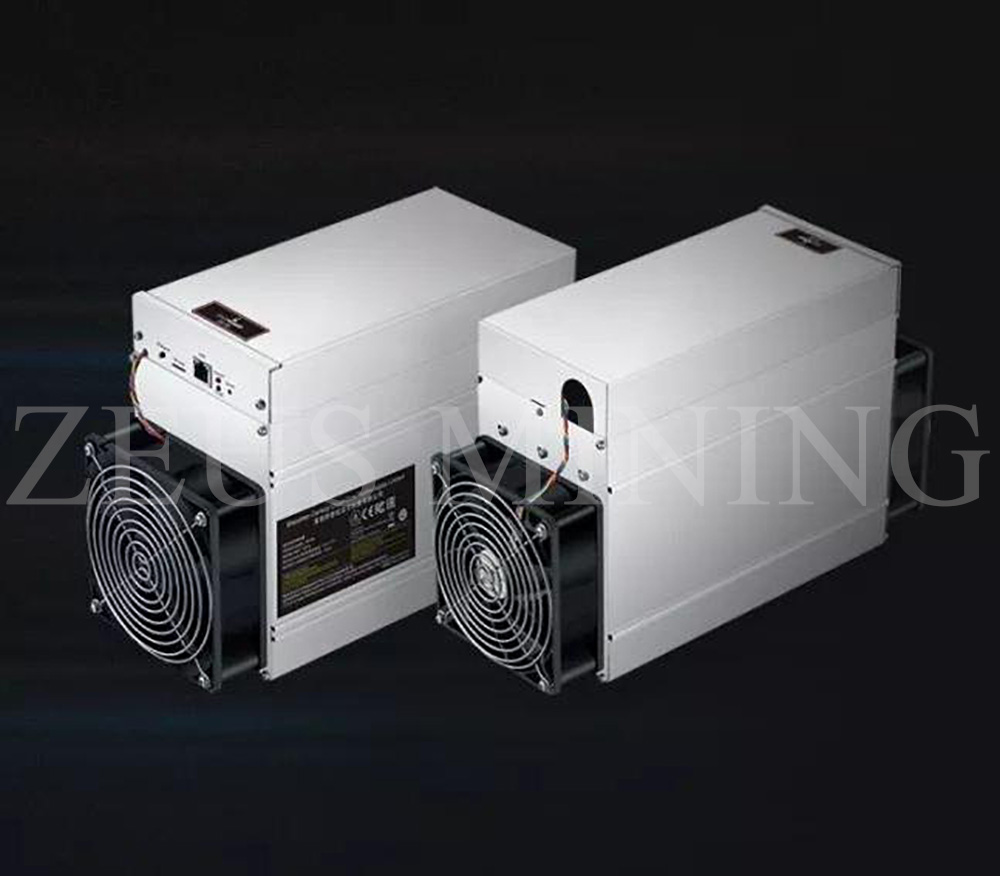

In terms of appearance, the most significant difference between the Antminer S9 and the Antminer S9 SE is that a protective cover is designed for the position of the S9 SE control board and the power interface, which can be removed by removing the middle screw behind the cover to facilitate the installation of the power cable.

Miner	Length	Width	Height
S9	350mm	135mm	158mm
S9 SE	321.3mm	129.6mm	200mm

As can be seen from the data in the table, the Antminer S9 SE is shorter in shape and taller than the Antminer S9. The two also use the front and rear dual cooling fan structure, convenient for existing mining farms to upgrade miners.

Product data comparison

For miners, the most important thing must be hash rate and power consumption! So let's compare the two's hash rate and power consumption data. Compared with the Antminer S9, the special version Antminer S9 SE has an 18.5% increase in hash rate and a 20% reduction in energy consumption. This means it is more economical for miners to mine and save electricity!

Model	Hash rate	Power consumption	Energy efficiency ratio
S9 SE	16TH/S	1280W	80J/TH
S9-13.5T	13.5TH/S	1350W	100J/TH

Product internal structure comparison

Another significant improvement of the Antminer S9 SE is the adjustment of the heat dissipation structure, which is equipped with a new fan speed control logic and adopts the design of unequal height heat sinks. The heat dissipation structure improves the uniformity of the heat dissipation of the miners, the miners run more stably, and the mining efficiency is higher.

In addition, Antminer S9 SE adopts Bitmain's latest firmware and supports Bitmain's security signature function, which can prevent malicious attacks by third-party software. Furthermore, the firmware's high temperature and pressure reduction mechanism ensures the stability of miners when the environment is high temperature, and the automatic high temperature and fan abnormal protection mechanism ensures the safety and reliability of miners in abnormal conditions.

In short, the specially upgraded version of Antminer S9 SE has a higher hash rate, more power-saving, higher heat dissipation efficiency, and a better mining experience!

The above is the full content of today. More wonderful performances of Antminer S9 SE are waiting for you to discover by yourself. You are also welcome to leave a message for discussion.

The content and pictures of this article are from the Internet, compiled and edited by ZEUS MINING.
