Ebit E9 Miner Mining Tutorial

Ebit E9 Miner Mining Tutorial

Ebit E9 miners use 14nm chips independently developed by Ebang. The hash rate reaches 6.3TH/S, and the power consumption is 140W/T. In addition, the miner comes with an independent radiator, which has excellent heat dissipation.

Miner specifications

Brand	Ebit E9
Model	6.3 TH/s @ 882w
Hash Rate	6.3 TH/s (-2%～+10%)
Power Consumption	140W/T (-10%～+15%, AC/DC 93% efficiency)
Fan	1 fan
PSU	Need a PSU > 900w with 6pin * 6

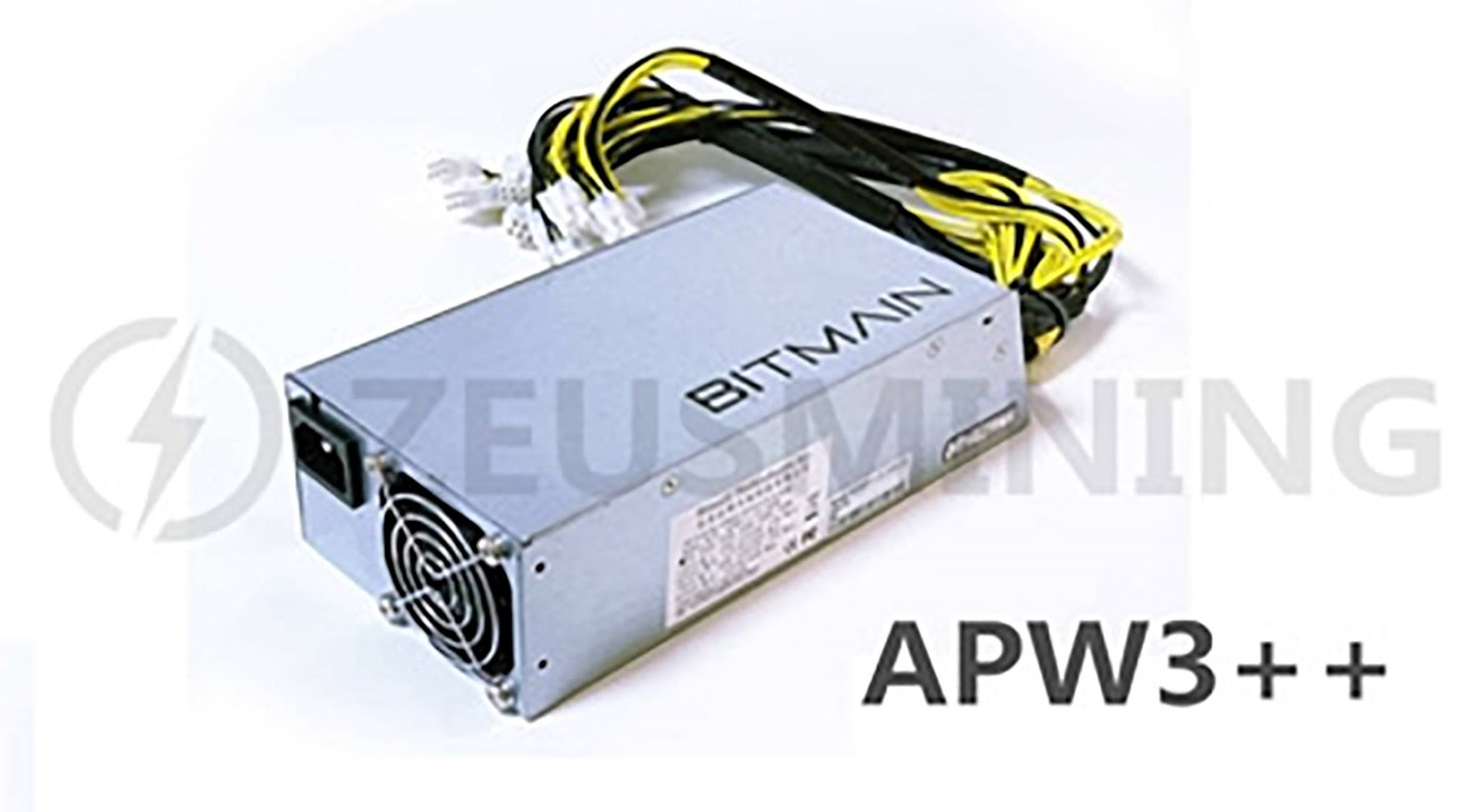

PSU Recommend	Antminer APW3++ PSU

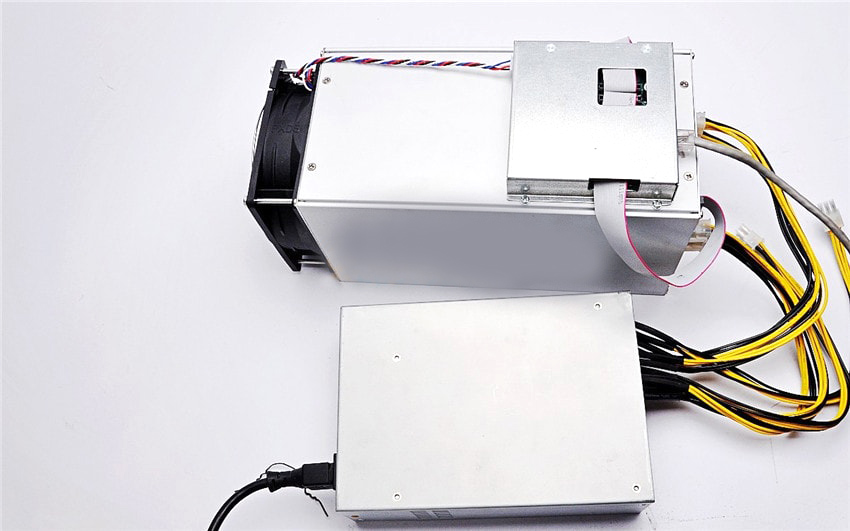

Miner connection

· When you receive the miner, please check whether the cable of the miner is plugged in tightly;

· Ebit E9 miners do not bring PSU; you can buy them at ZEUS MINING;

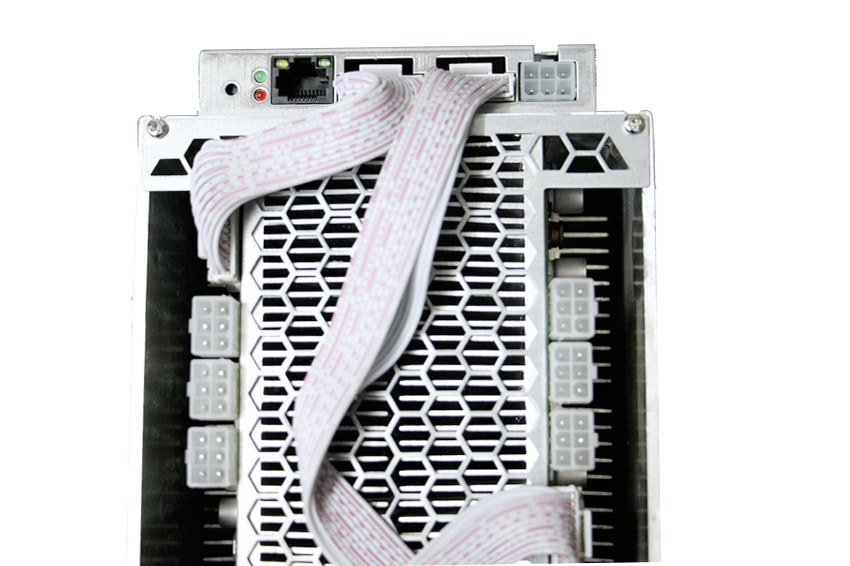

· There are 6 6PIN lines on the PSU, which connect the six 6PIN ports on the miner.

· We can see an additional 6PIN interface on the control board of some miners; this port does not need to be connected.

· Connect your PSU power cable to the six 6PIN ports on the miner.

· Finally, plug in the ethernet cable and the miner is connected.

Mining guide

· Please check whether all cables are connected correctly before setting, and turn on the power after making sure there are no errors.

· Please wait patiently for 1~3 minutes to complete the miner initialization operation.

· Use IP Reporter to scan miner IPs. It is recommended to refer to the article How to use IP Reporter?

· Log in to the miner configuration page: run your Google Chrome browser and open the IP address you just scanned (e.g., 192.168.1.209).

· After logging into the miner IP, if you get a warning about the security of the https protocol. Please click "Advanced" -> "Continue to 192.168.1.209 (unsecured)".

· The username is "root," and the password is "admin."

· After entering the page, you will see the miner dashboard on the following page.

· Move the mouse over the command "Miner" and a subdirectory will appear, namely "Miner Status" and "Miner Setting."

· Click Miner Settings to set up your mining account. It contains the miner username, password, mining pool, and other settings.

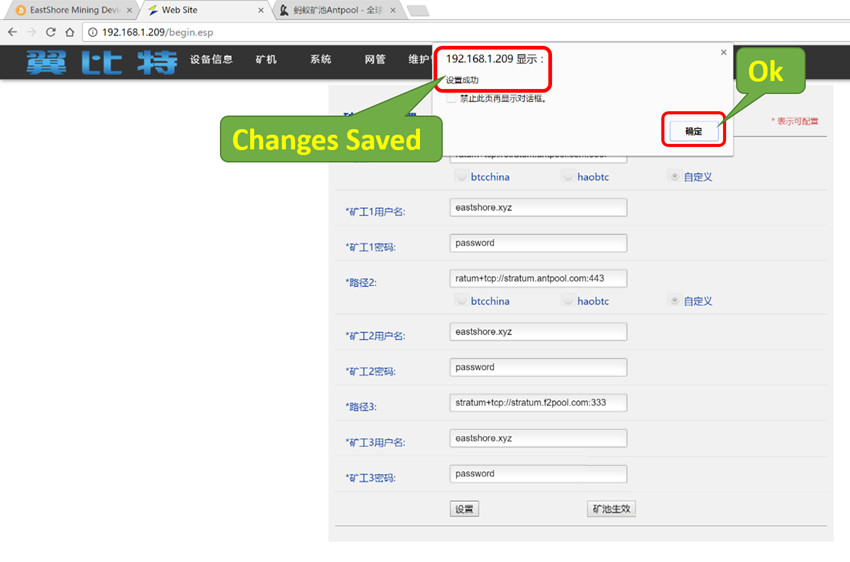

· Click "Save" to save the changes. If the page "Changes Saved" pops up, click "OK."

· The miner will then automatically restart mining.

· You can check the miner's mining hash rate speed on the miner's dashboard page.

· You can also view more detailed mining information on the "Miner" -> "Miner Status" page.

· Finally, click on the Ebit logo to return to the miner's dashboard.

The content and pictures of this article are from the Internet, compiled and edited by ZEUS MINING.
